SPECIFICATIONS

Application: Outdoor

Brand Name: JIAJIU

Certificate: VDE

Communication: WIFI

Cooling: Natural

Input Voltage: 18V--60V

Inverter Efficiency: 95%

Inverter type: On-grid Inverter

Model Number: Die-cast aluminum

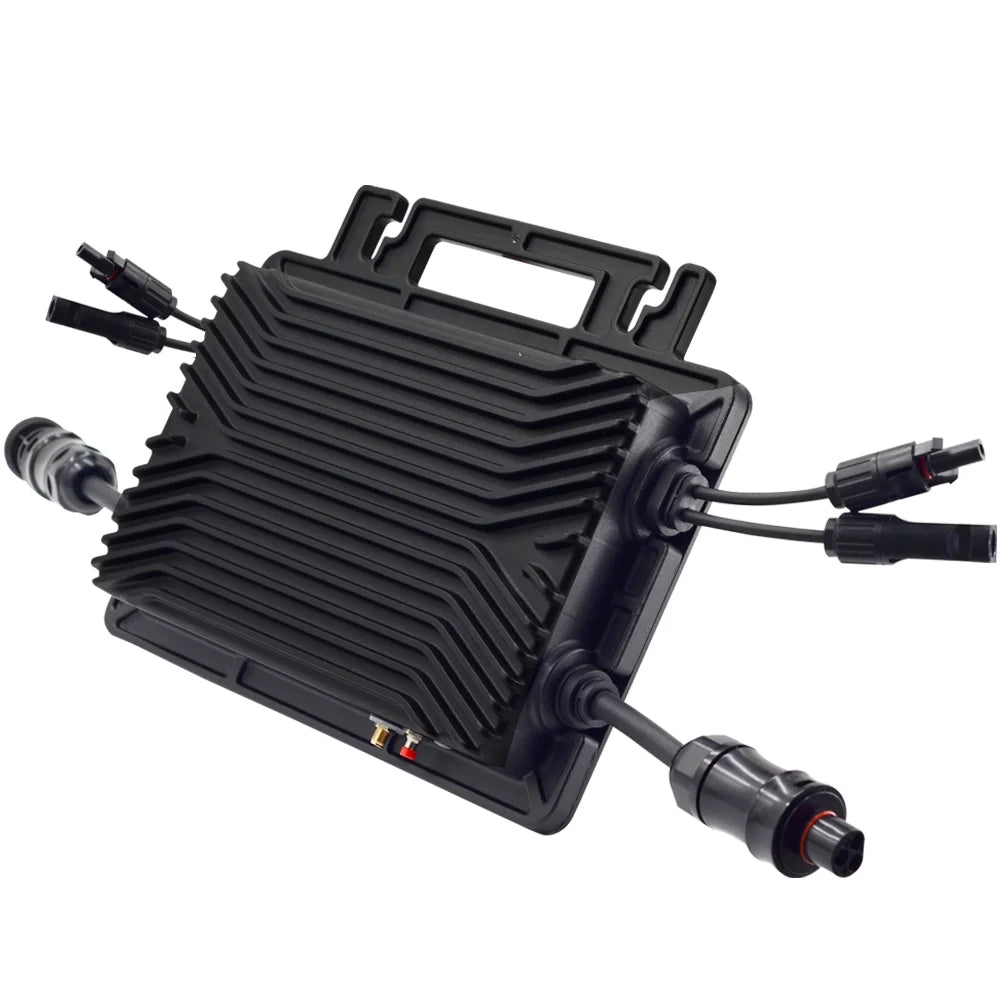

Name: die-cast aluminum micro inverter

OEM: Accept OEM

Output Current: 7.3A/3.6A

Output Frequency: 50Hz/60Hz

Output Power: Other

Output Type: Single

Output Voltage: 110V/220V

Place of Origin: Guangdong, China

Product name: Grid Solar Micro Inverter

Rated power: 600w

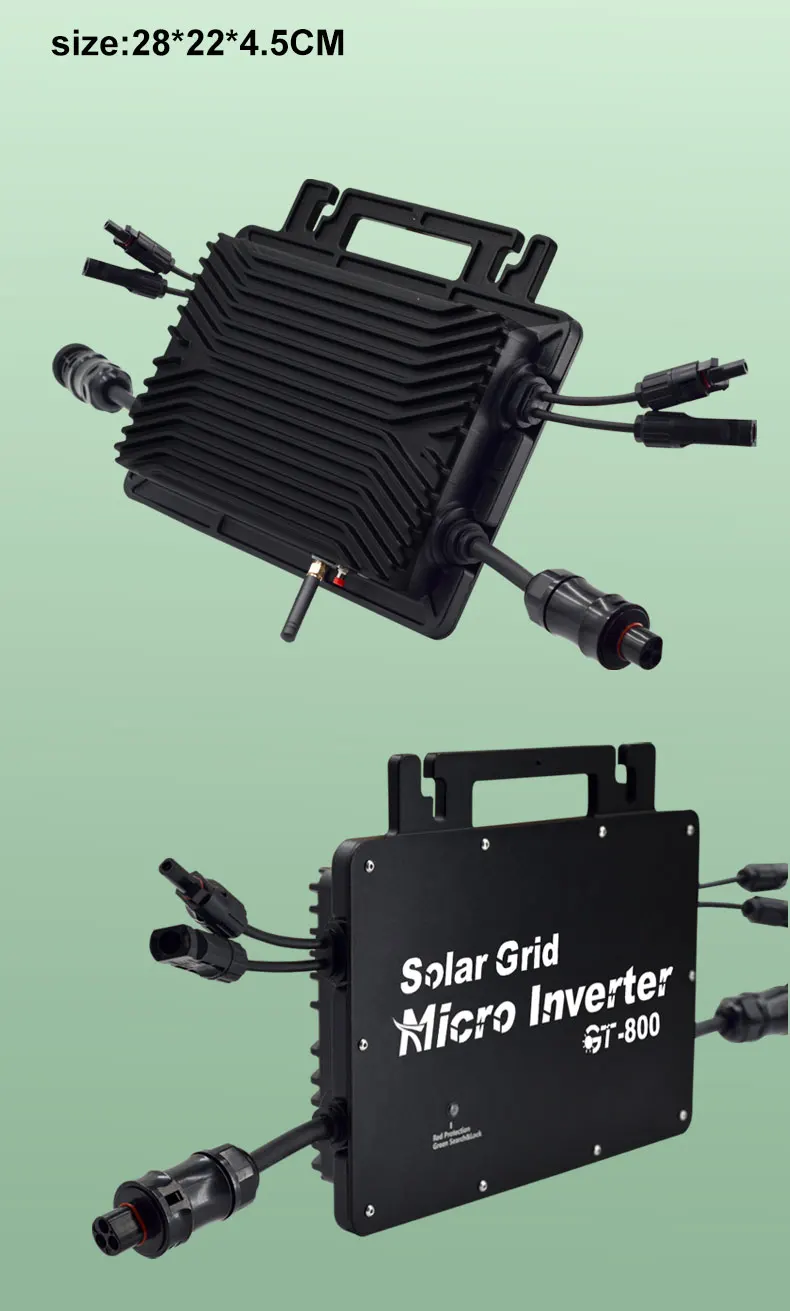

Size: 280mm*220mm*42mm

Type: DC/AC Inverters

Waveform: Pure Sine Ware

Weight: 2.3kg

Features

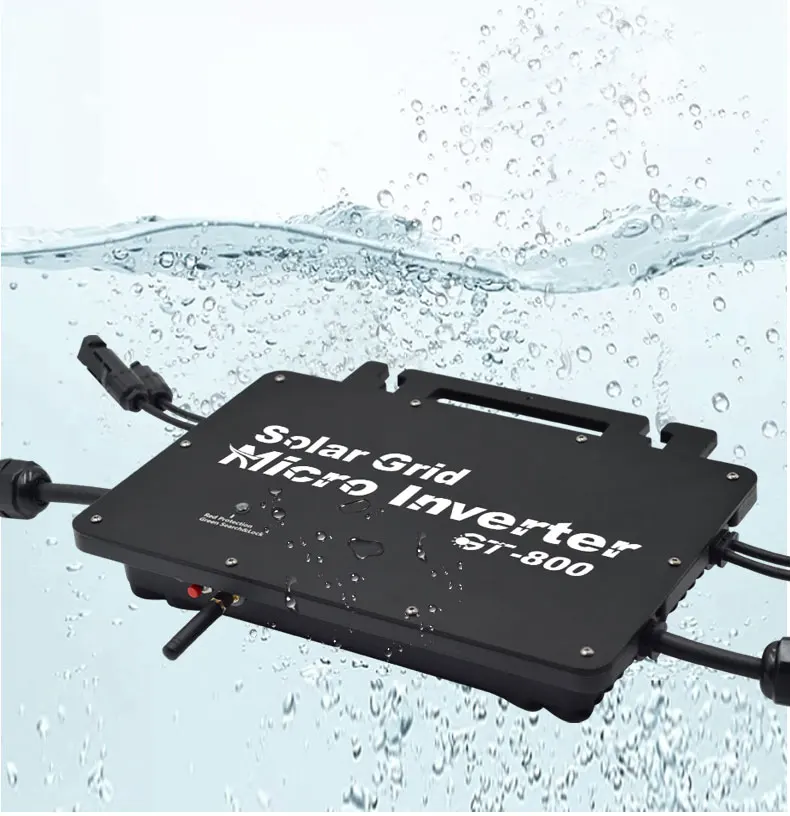

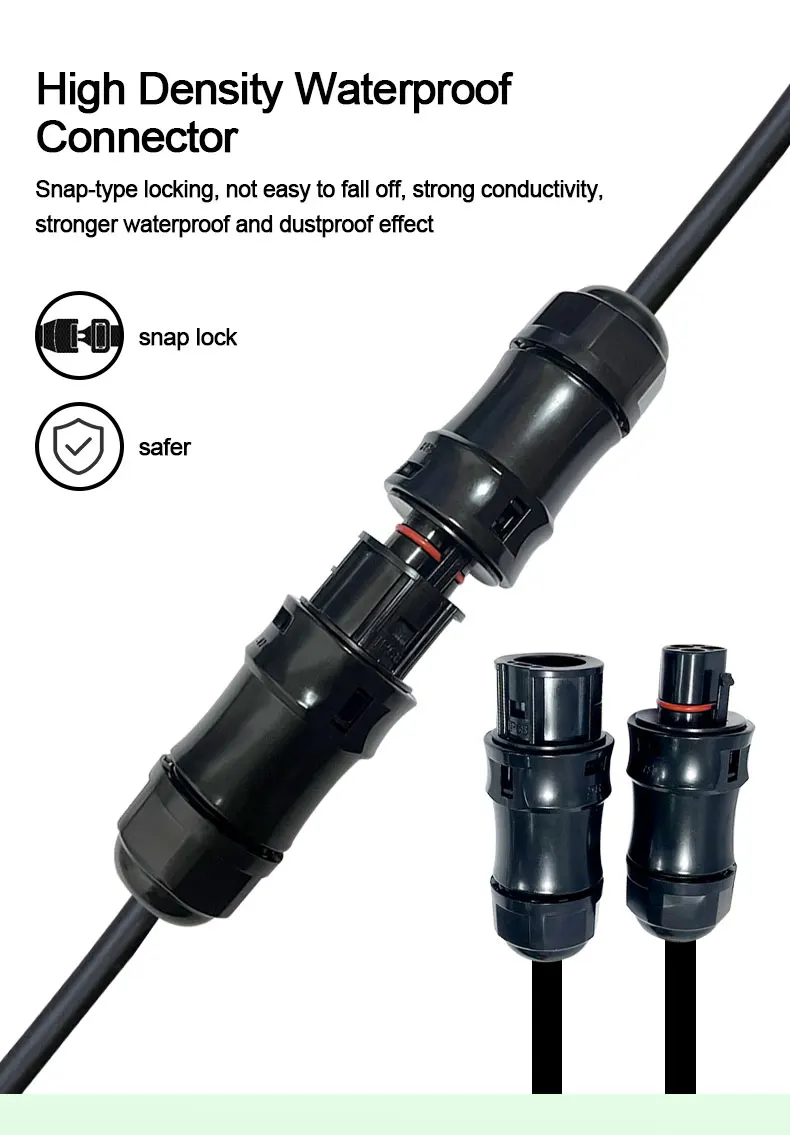

 High density waterproof function

The waterproof level is upgraded to IP67,dust inhalation protection (overall protection against contact, protection against dust penetration),short immersion,additional heat dissipation device behind.

Super capacitor 10000H

The capacitance per unit volume is very large tens to hundreds of times larger than that of other inverters. Service life 25 years plus.

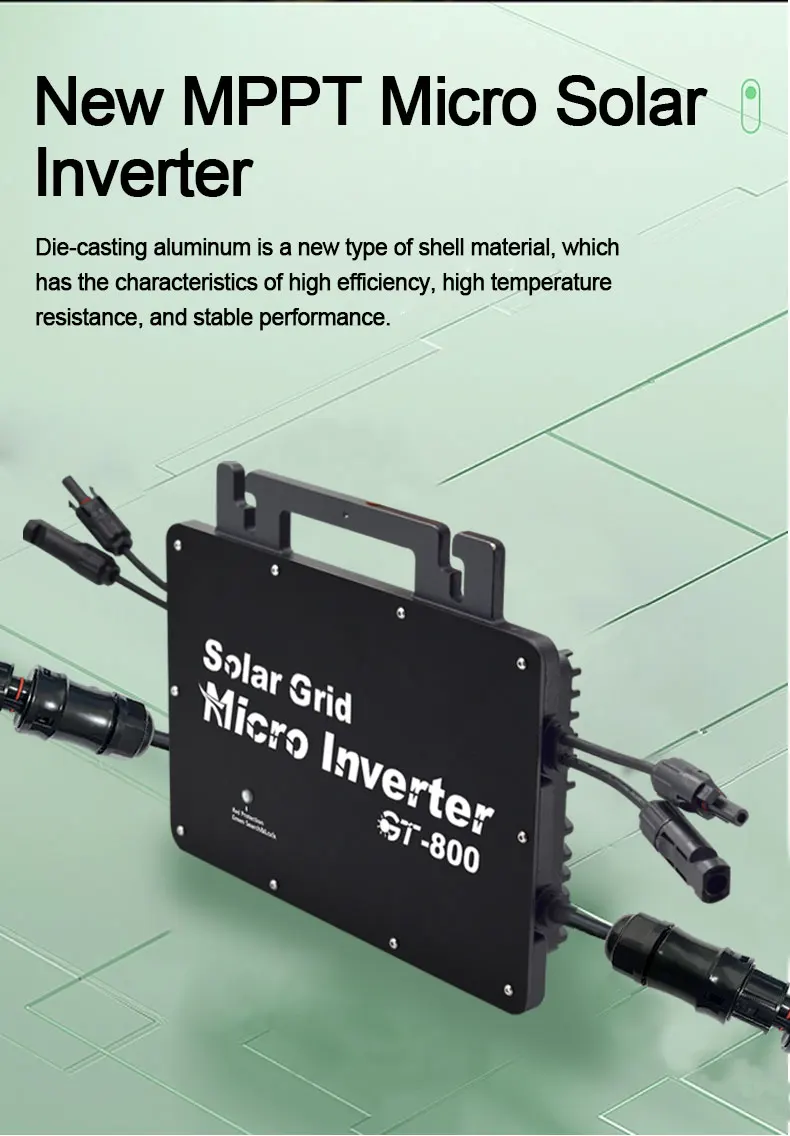

MPPT Maximum power point tracking

Has advantages over centralized inverters. In this way, Maximize the overall output power by optimizing the output power of each module.

High safety anti-electric shock hazard

The problem of preventing electric shock is solved in principle,and the principle is introduced from the AC structure line,which separates the power-on state from the waiting state.Make sure that the unipolar insertion cannot be powered on.Only when the suitable fire zero bipolar is inserted into the socket at the same time can the power be turned on.In principle,it eliminates the hidden danger of electric shock also avoids the danger of electric shock caused by traditional sockets.

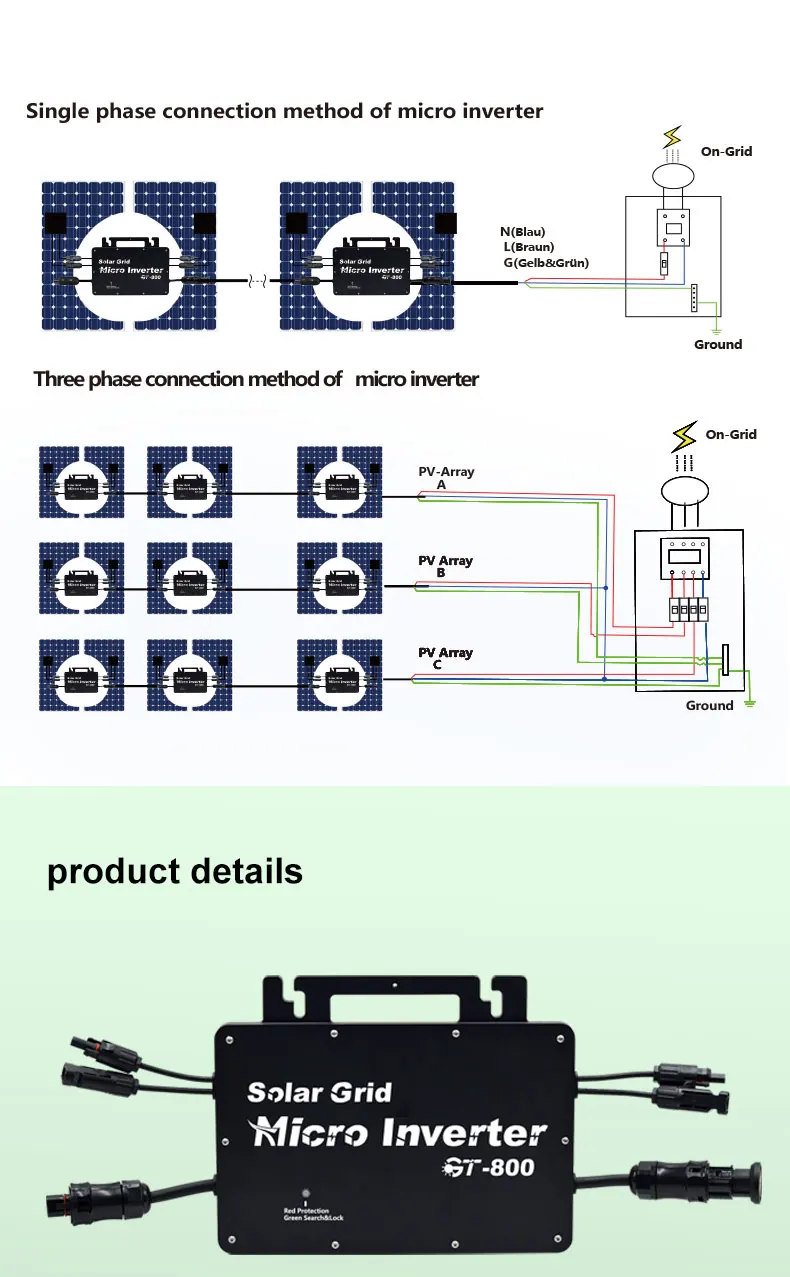

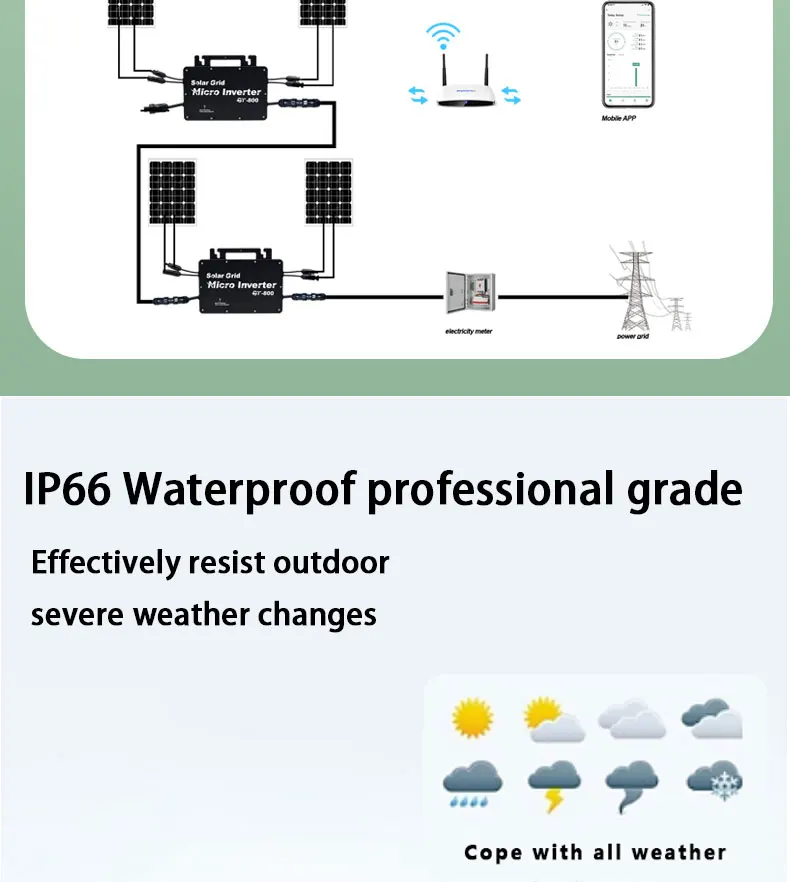

Multiple units stacked in parallel

In the photovoltaic system using micro-inverters,each module corresponds to an independent MPPT,which can ensure that each module is in its own output at the maximum power point of the system, so the overall power generation efficiency of the system will not be affected by the"short board" and will not decline significantly.

Model	600w/700w/800w
Input Data(DC/AC)
Number of Input MC4 Connector	2 sets
MPPT Voltage Range	22V--48V
Operation Voltage  Range	18V--60V
Maximum Input Voltage	60V
Startup Voltage	22V
Maximum Input Power	600W 700W 800W
Maximum Input Current	12A*2 14A*2 15A*2
Output Data(AC)
Single-Phase Grid Type	120V&230V
Rated Output Power	600W  700W  800W
Maximum Output Power	600W  700W  800W
Nominal Output Current	@120VAC:10A/@230VAC:5.2A @120VAC:11.6A/@230VAC:6A @120VAC:13A/@230VAC:6.9A
Nominal Output Voltage	120VAC/230VAC
Default Output Voltage Range	@120VAC:80V--160V/@230VAC:180V--270V
Nominal Output Frequency	50Hz/60Hz
Default Output Frequency Range	@50Hz:48Hz--51Hz/@60Hz:58Hz--61Hz
Power Factor	>0.99%
Total Harmonic Distortion	THD< 5%
Maximum Units per Branch	@120VAC:2units/@230VAC:3units
Efficiency
Peak Efficiency	95%
Nominal MPPT Efficiency	99.5%
Night Power Consumption	<1w
Mechanical Data
Operating Ambient Temperature Range	-40℃ to +65℃
Storage Temperature Range	-40℃ to +85℃
Dimensions（W*H*D)	280mm*220mm*42mm (not include connectors and cable)
Weight	2.3kg
Max Current of AC Bus  Cable	20A
Waterproof Grade	IP66
Cooling Mode	Natural Convection -No Fans
Other Features

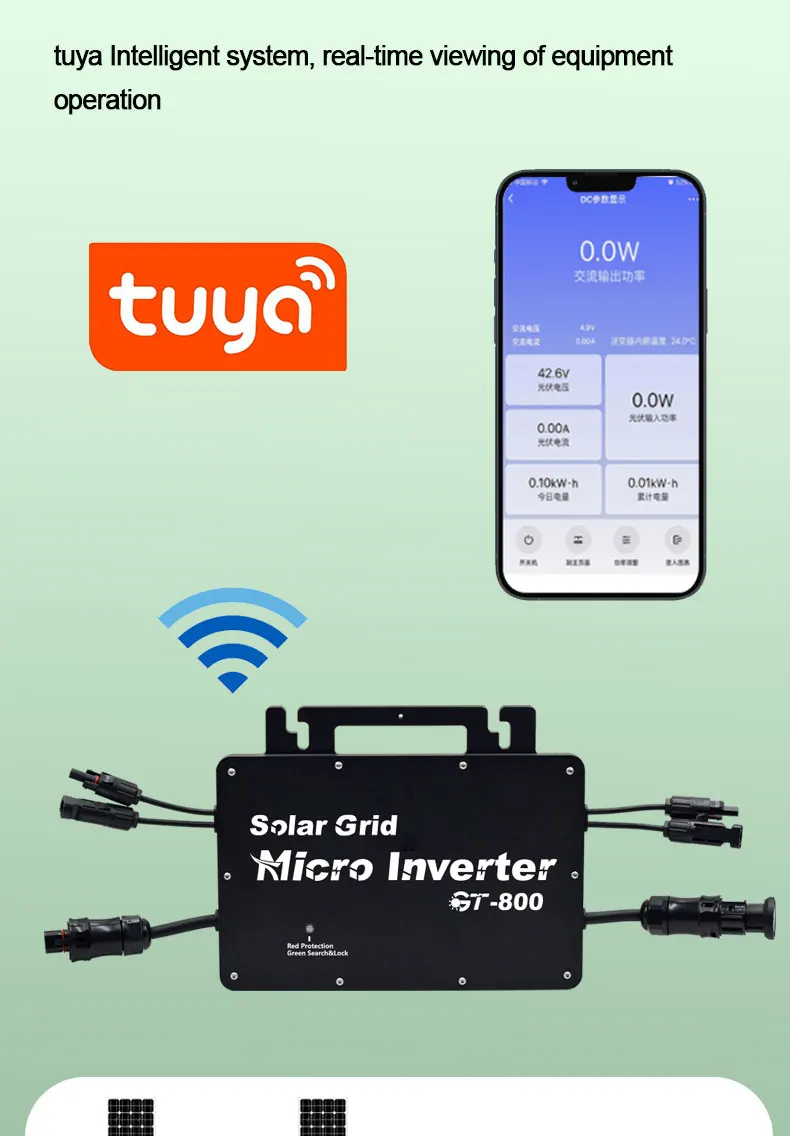

Communication	WIFI(Cloud monitoring)
Transformer Design	High Frequency Transformers, Galvanically Isolated
Integrated Ground	Equipment ground is provided by the PE in the AC cable, no additional ground is required.
Protection Functions	Isolated Island Protection, Voltage Protection, Frequency Protection, Temperature Protection, Current Protection, etc.
Design Compliance	EN IEC61000-3-2:2019+a1:2021 EN 61000-3-3:2013+A1:2019+A2:2021 EN IEC55014-2:2021, EN IEC 55014-2:2021

Questions & Answers

 1. WHAT TO DO when the Smart-App can't find the micro inverter to be added?

Check the following points:
* Check if the WiFi status indicator of the micro inverter is in the "Blue Flashing" state;
* Check if the Bluetooth function of your smart device is turned on;
* Check if the signal of the wireless network is good.

If all this is the case and the inverter is still not found, press the red reset button for more than 5 seconds to
reset. After the WiFi indicator light flashes blue again, use "Smart Life" App to reconfigure the network.
2. WHAT TO DO if I have multiple micro inverters to configure?

Install all micro inverters properly and make them work normally to generate power, and then
operate according to the configuration and use steps. The App can search all inverters to be added at one
time and configure them at one time.
3. WHAT TO DO if the SSID of my WiFi network or the password is changed?

Please reconfigure the inverter according to the configuration and use steps.
4. WHAT TO DO if the WiFi status indicator of the inverter goes out, but the device displayed on the

app is not online?
This means that you can connect to the wireless network device, but you can't connect to the cloud
server. It means that your wireless network device can't connect to the Internet. Make sure that your
Internet is working properly.
5. The installation site of the inverter is temporarily not equipped with a router and no WiFi signal.

How does App connect the inverter and detect if the inverter is working properly?
You can use an idle smartphone to open the WiFi sharing of mobile phone signal hotspot for
connection, and reconfigure the network connection after installing the router.
6. There are multiple WiFi signals on site. Can we connect with different WiFi signals?

No, the WiFi connected of the micro inverter and the smart phone must be consistent before the
network can be configured.
