SPECIFICATIONS

Antenna: 8dbi

Brand Name: Yistar

Customized support: Customized Logo,OEM, ODM

Dimension: 227*227*60mm

Frequency: 860-960 MHz,860~868MHz, 902~928MHz frequency

Interface: RS232, RS485, Wiegand Standard, TCP/IP&Wifi&4G(optioinal).

Material: ABS

Max reader distance: 6M

Model: G20

Operation System: Linux,Windows 10,Windows 7,Windows CE,Windows XP

Place of Origin: Guangdong, China

Power: MAX 4W

Power supply: DC12V3A

Protocol: ISO18000-6C(EPC Class1 Gen2)/ISO18000-6B(Optional)

Software: #,VB, Delphi Demo;C#, Java, VC SDK

Support Card: UHF Card

network: Wifi,4 g,TCP/IP

protocol: ISO 18000-6C

reading distance: 6M

Product Description

Descriptions:

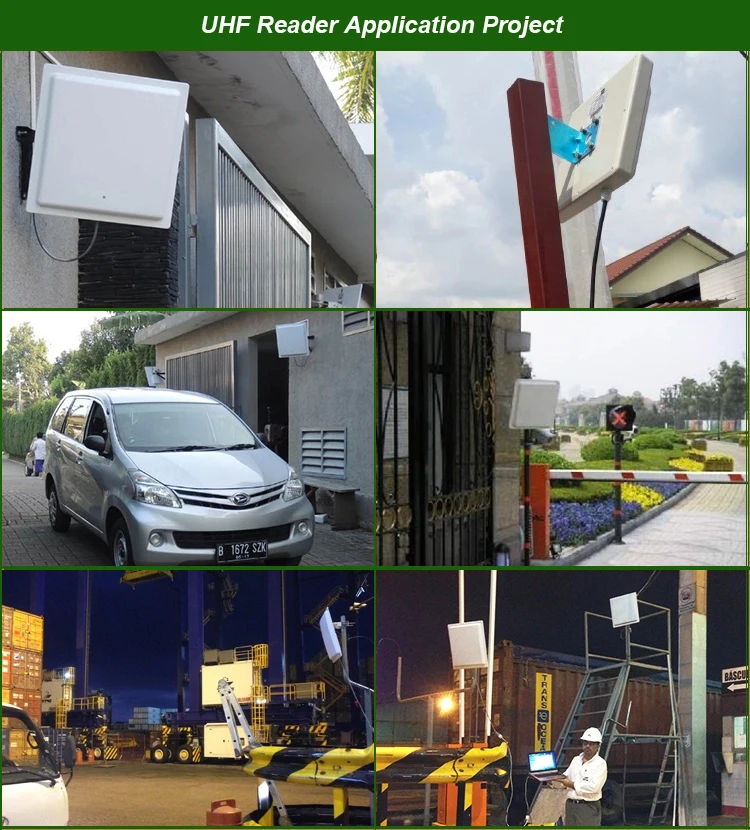

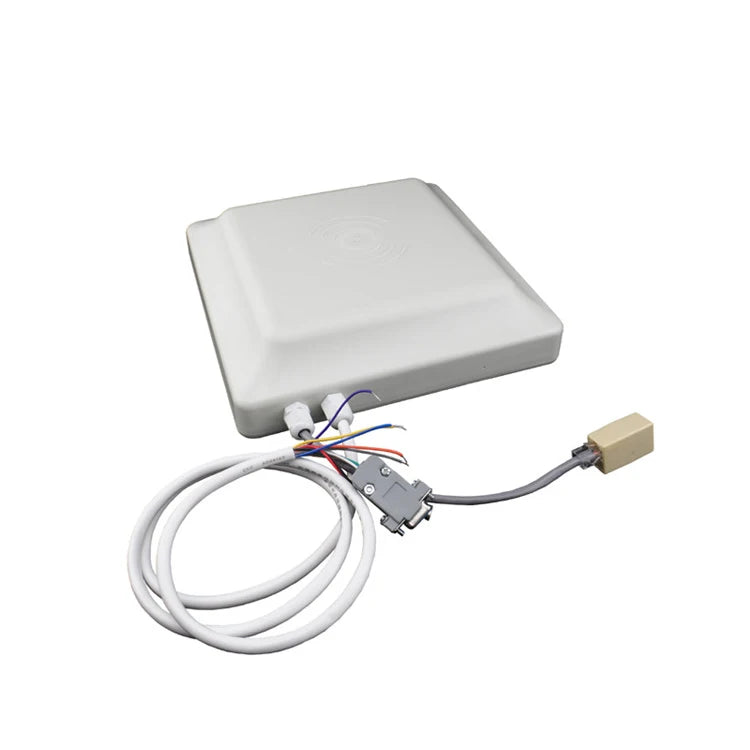

G20/G45 is a high performance UHF RFID integrated reader rfid reader uhf rfid reader rs232 jewelry rfid reader. It is designed with low power dissipation and high integrated RFID chip solution, which has features of long reading distance, high identification speed,multiple interfaces and easy installation. It can be widely applied in many RFID application systems such as logistics, access control, and anti-counterfeit and industrial production process control system etc.

Features:
*Adopt low power dissipation, high performance, long distance RFID module design;
*Support EPC global Class1 Gen2/ISO 18000-6C protocol tag;
*840~868MHz/902~928MHz frequency band (frequency customization optional);
*FHSS or Fix Frequency transmission;
*RF output power up to 30dBm (1dbm step adjustable);
*Built-in 8 dbi circular polarized antenna, effective distance over 5m;
*Support command, Auto and trigger working mode;
*Low power dissipation with single +12V DC power supply;

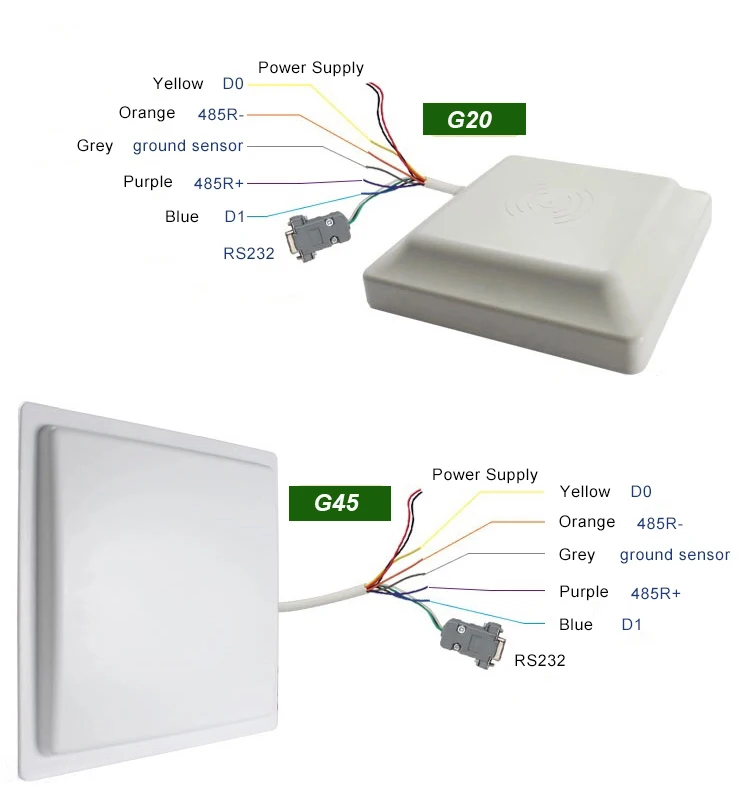

*Support RS232, RS485, Wiegand and Trigger interfaces;
*RJ45 (TCP/IP, UDP) and WIFI interface are optional, PoE optional;
*Support EPC, TID and USER inventory in independently or conjunctively;
*Support IAP firmware upgrading;
*Relay optional;
*Support IE Browser parameter configuration;
*Provide Windows & Linux demo software and SDK for testing and furtherly development.

Specification:

Model	G20
Frequency	840~868MHz/902~928MHz
Tag Protocol	EPCglobal UHF Class 1 Gen 2 / ISO 18000-6C
Built- in Antenna Type	8dbi linear polarization antenna
Communication	Support RS232, RS485, Wiegand and Trigger interfaces Optional RJ45 (TCP/IP, UDP) and WIFI interface are optional, PoE optional;
SDK	Provide Windows & Linux demo software and SDK for testing and furtherly development.
Power supply	12V DC 3A
Working Distance	5M

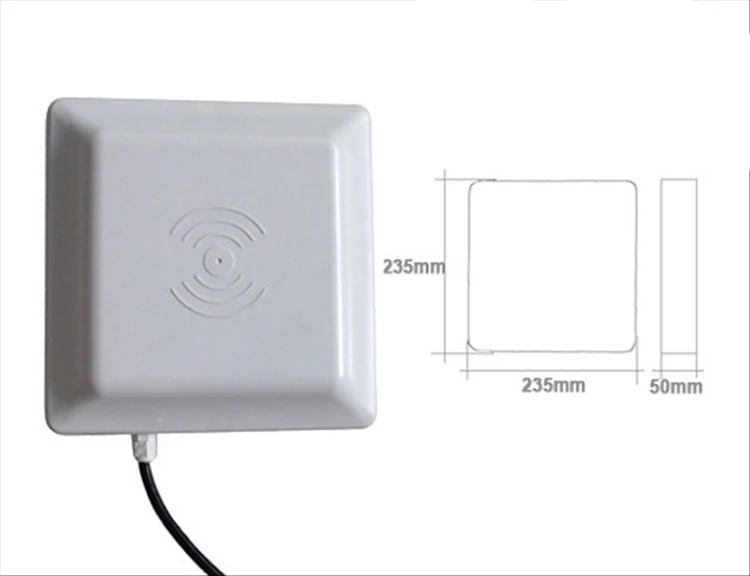

Dimension	235*235*60mm

After Sales Service

Warranty: 2 years.

Warranty way: Replace directly instead of fix.

Once u have any technician and install problems, pls contact with engineer by email, our engineer will give u feedback in 15 mins.

Once u have any problems with the sellers, pls kindly feedback to the sales director.

Company Introduction

YSTech is one of the most professional electric locks manufacturers in Asia which has zhongshan factory and Enping factory that covering an area of 10,000 square meters. We have strong R&D skills, production capacities and distribution channels. Our products are Magnetic locks, Electric striker, Drop bolt, RFID cards, Access control reader, Fingerprint door lock, Exit buttons, Door holder, remote control and other access control accessories, which totally over 200 kinds of products. YSTech boasts a talented and experienced team of technicians with top-notch skills in design and development. Equipped with the digitalized automatic equipments, we are dedicated to ensure the consistency and quality of each product. Our high production controls and standards to make sure every products are 100% pass. The products have 3 years warranty. The newly-designed series of YS products are esthetic, safe and durable. In compliance with the international standard, we have been exported to more than 100 countries successfully, including Asian, European, African, South American and the Middle East countries. We are one of most important access control coorperative partners in the world. We also provides OEM&ODM services which are extensively applied in access control, communications among buildings and emergency exits, etc. Our reliable products have gained an extensive recognition from customers domestically and abroad.Currently, we have obtained intellectual property rights for our core products. They have been certified by the CE 、MA、ROSH、ISO9001、UL and PCT. After many years development, Our product are widely used in the major airports, customs, metro stations, Olympic Games, Telecommunications, Government, Banck, Factories, Campus, Hotels, Schools, Offices, Intelligent Community And so on.

Production Flow Chart

Raw materials into the factory → qualified inspection → production of silicon steel sheet → annealing treatment → winding treatment → injection molding → grinder treatment → electroplating treatment → lock body detection → circuit board detection → aging test → tension and electrical properties detection → packaging and storage

Certifications

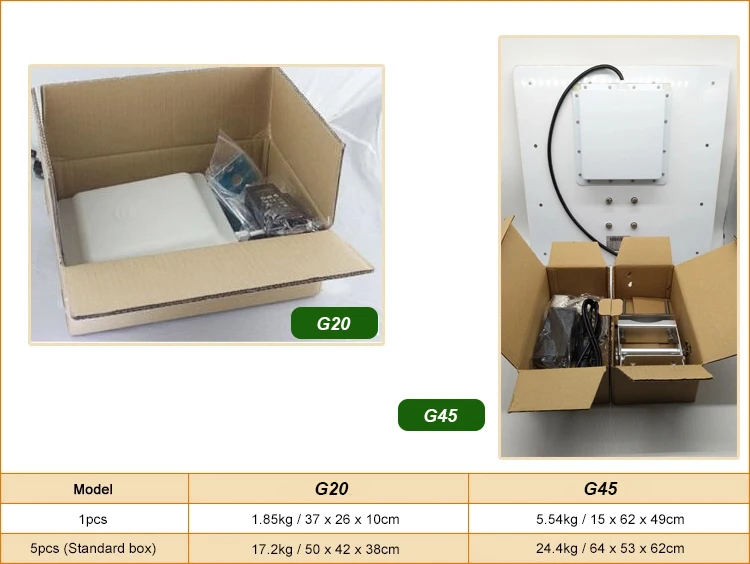

Product packaging

FAQ

Q1, Do you provide OEM & ODM?

A: Yes, We do support, we have 10 years OEM & ODM experience which can satify all customers requirement.

Q2, How about Warranty?

A: We provide 1 year Warranty for all electric locks, the locks will be replaced instead of fixed.

Q3, How about the payment terms?

A: We accept T/T, Western union, Money Gram, Paypal; Trade Assurance ect..

Bulk Standard Order: 30% deposit first, 70% balance before shipment.

Bulk OEM & ODM Order: 50% deposit first, 50% balance before shipment.

Q4, How we can trust ur company？

A: Yistar is a 10 years company in security field which professional in magnetic lock, electric bolt and RFID cards, and alibaba trade assurance will protect buyers.

Q5, What is the deliver time?

A: It depends on customers order quantity , season and requirement details, the following time is for u to reference.

Standard device: Sample: < 3 days.

100pcs < 7 days.

1000pcs< 15 days.

5000pcs< 25 days.

OEM device: Sample: < 5 days.
100pcs < 10 days.
1000pcs< 20 days.
5000pcs< 30 days.

Q6, What kind of certificate do u have?

A: CE, FCC, ROHS ect.

Q7, Which shipping way your company normally use?

A: DHL, TNT, UPS, FEDEX express way; By sea; By air; customers forwarder etc.

Q8, How about after-sale service.

A: We have technician team to support the install guide and technician problems, pls send email to support @yistartech.com once u need any help.
