SPECIFICATIONS

Application: led neon sign

Brand Name: JHG sign

Color Rendering Index(Ra): None

Color Temperature(CCT): 6000K (Daylight Alert)

Emitting Color: customized

Function: decoration

IP Rating: IP67

Input Voltage(V): DC 12 V

Item Type: Neon Lights

Keyword: neon sign

LED Quantity: 120 lamps

Lamp Body Material: silicone tubes

Lifespan (Hours): 50000

Light Source: LED

Lighting solutions service: Onsite Metering

MOQ: 100meters

Model Number: silicone tubes

Package: carton

Place of Origin: Jiangsu, China

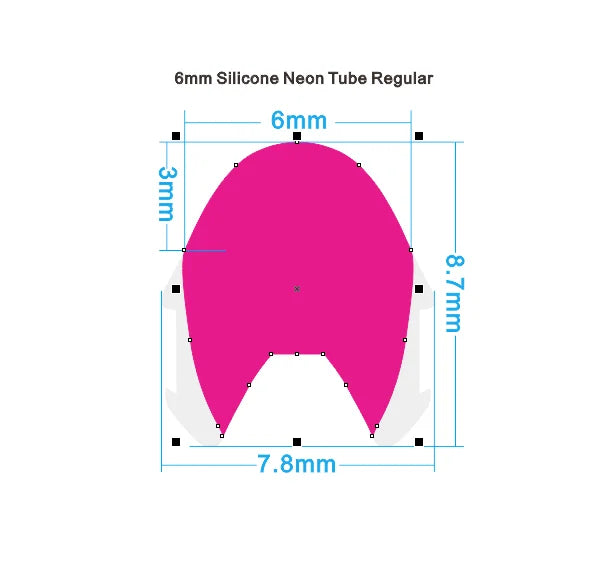

Silicone tube size: 6mm

Support Dimmer: Yes

Warranty(Year): 2-Year

Working Temperature(℃): -10 - 50

Have you ever met following issues when making led neon signs?

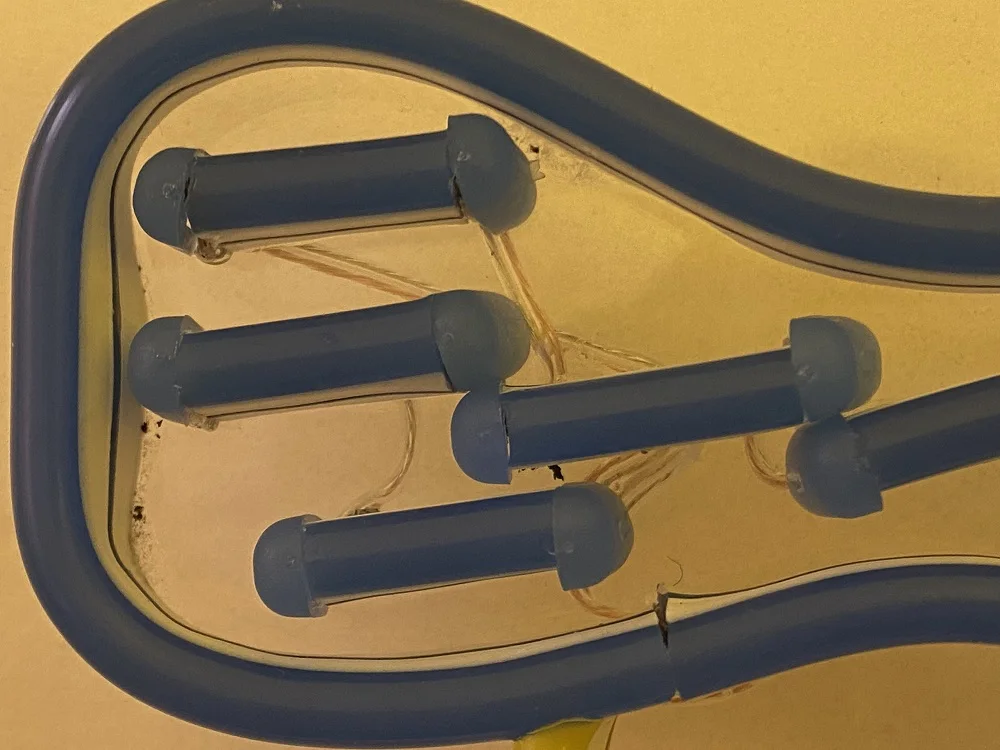

No perfect connections

The interface doesn't look perfect because of the limitations of the wires and the need for glue to hold it together

End caps needed

Each independent part of the flex tube needs to stick on the end cap,otherwise the light leakage will affect the overall effect.

Cutting length limit

The strips have a 1cm or 2.5cm cut limit.It is not easy to make complicated or small size of designs.And the carving files.

Now we have 2nd generation solution for led neon sign making!

Which can let you make neon sign easily.

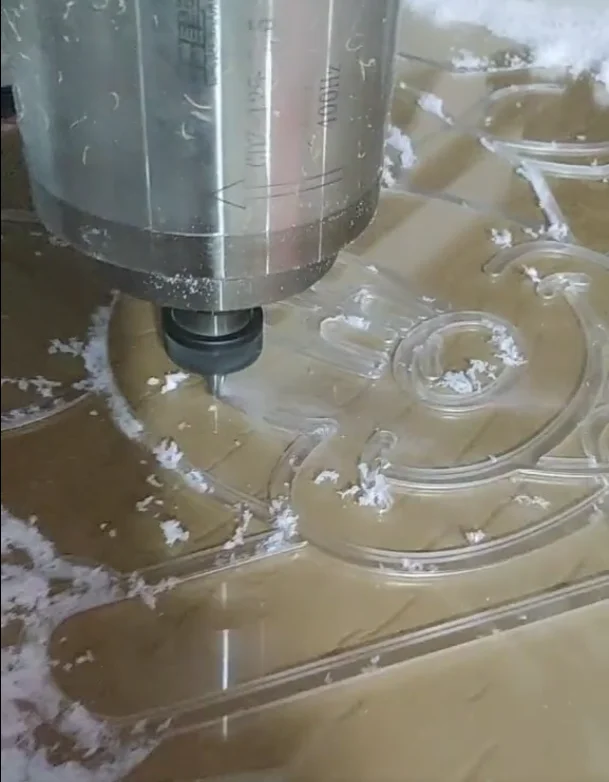

Step 1-Acrylic carving

Carving acrylic backboard with our milling cutter

Carving depth 4.2mm for over 5mm acrylic;

Carving depth 5.8mm for over 7mm acrylic;

Step 2-Lay led strips

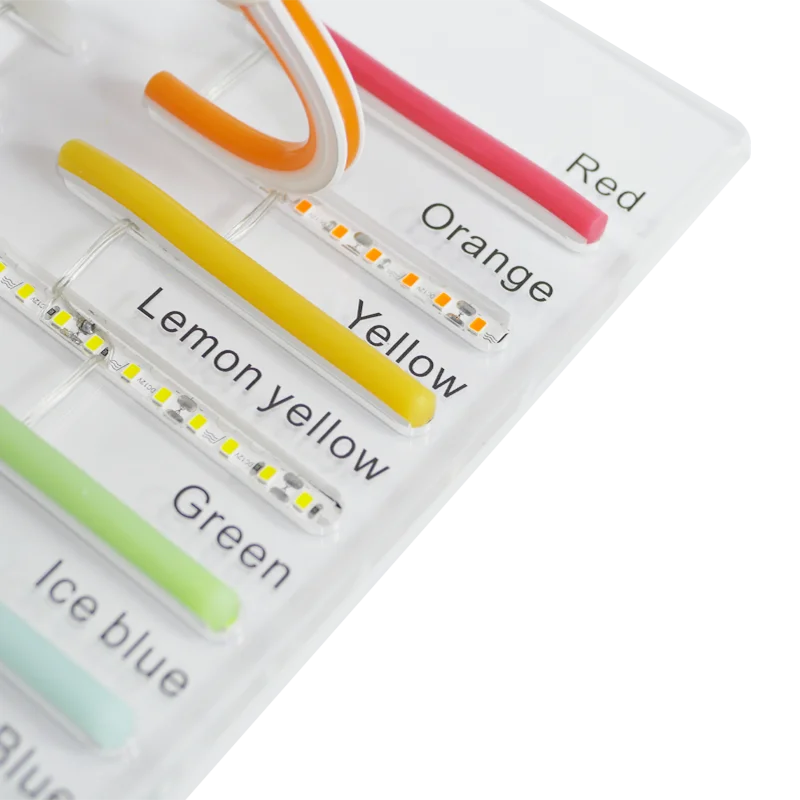

Colored led strips with colored silicone tubes;

Colored led strips with white silicone tubes;

Both can work

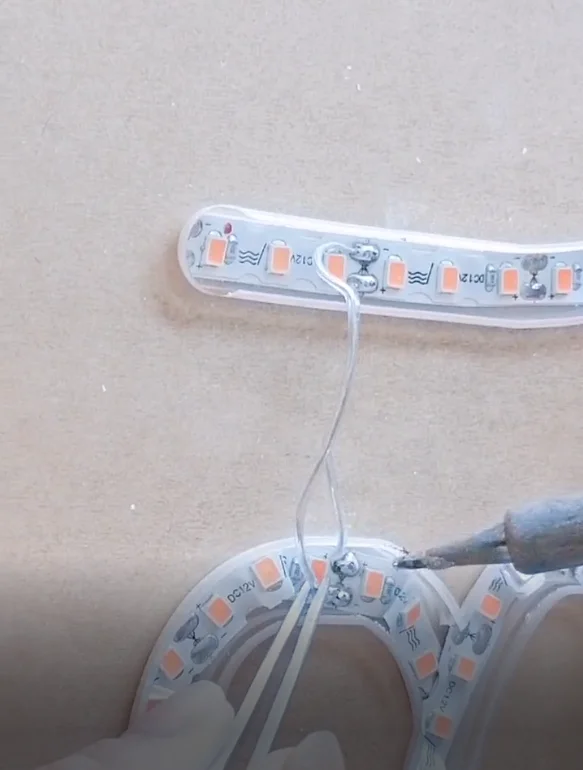

Step 3-Connection wires

Ensure that the solder joints are round and have no spurs, and blow out foreign objects on the PCB board to avoid the risk of short circuits;

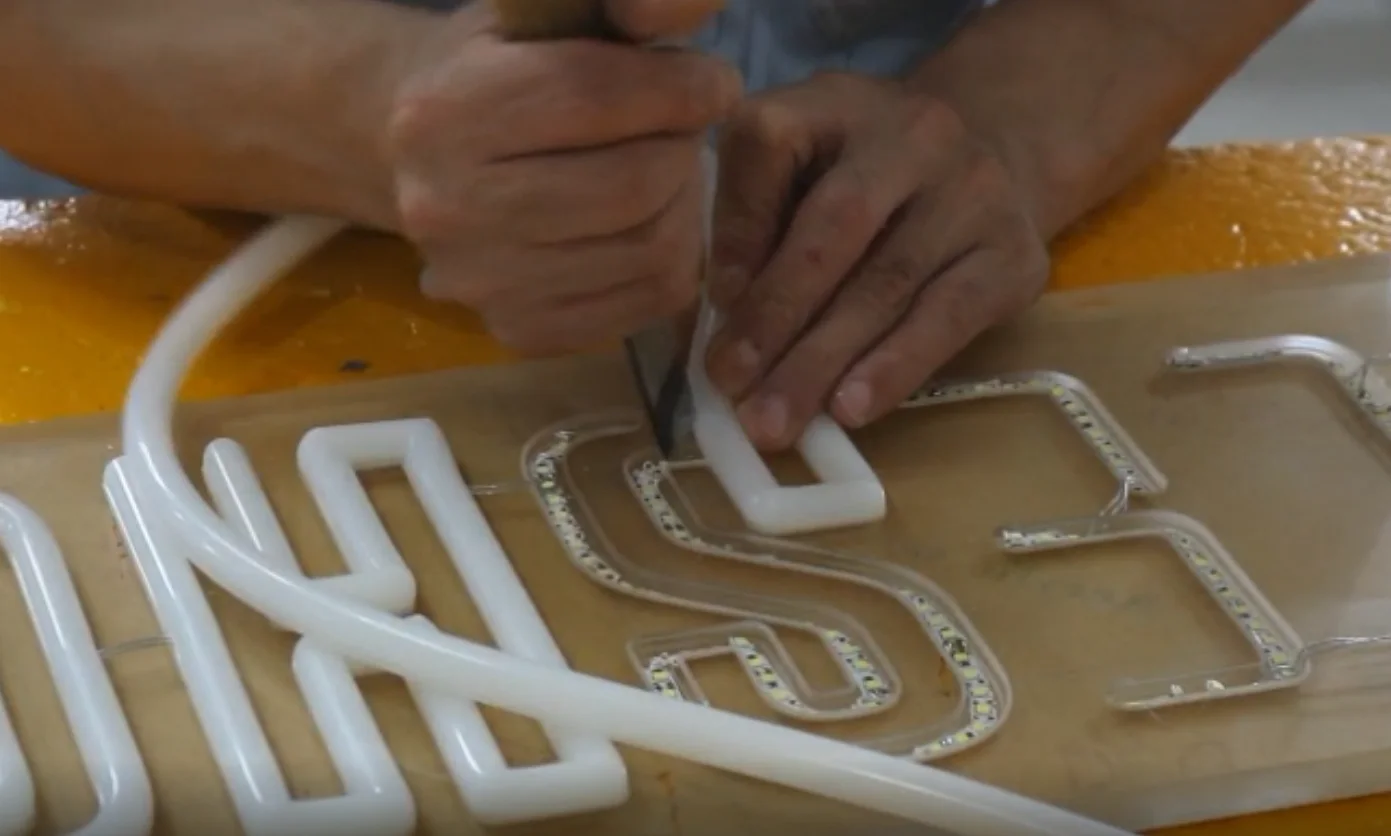

Step 4-install silicone tubes

Cut silicone tubes with our hand tools;

Silicone tubes can be locked into acrylic without any glue process；

Step 5-Neon sign Aging

Aging time： 12-24 hours；

When aging, check whether the led strip has dark spots, and leave all problems in the factory to solve;

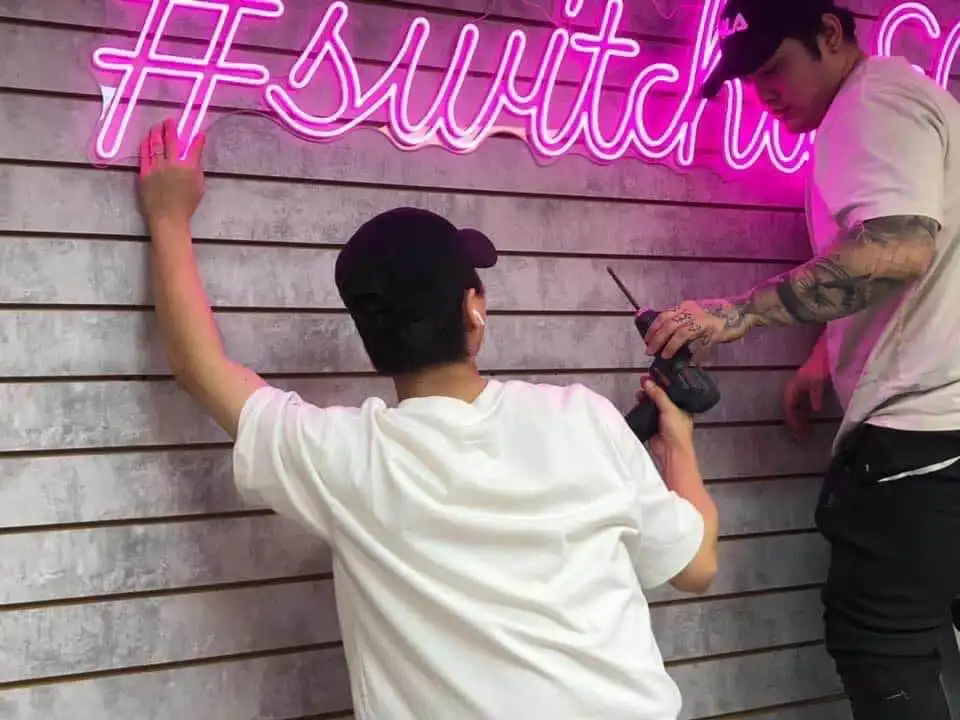

Step 6-install neon sign

Common installation methods are hoisting and wall installation. For outdoor use, you need to add a waterproof process;

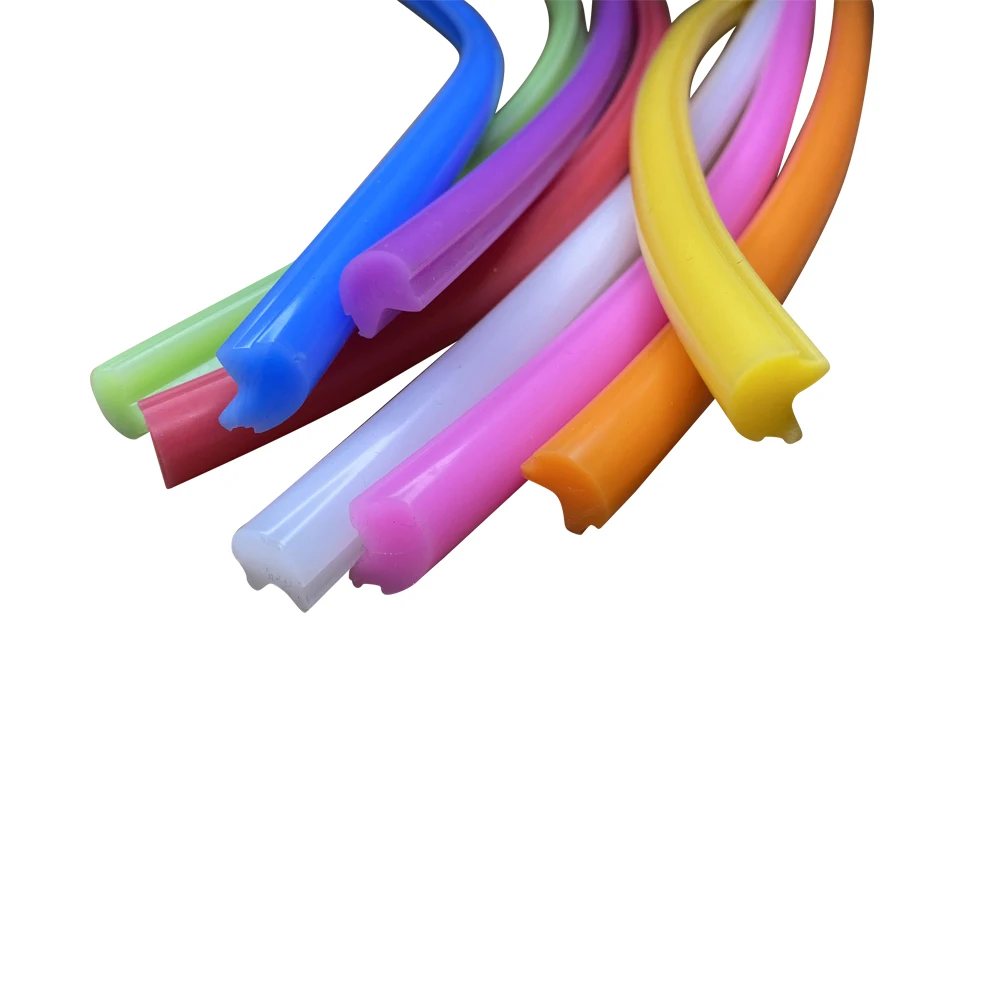

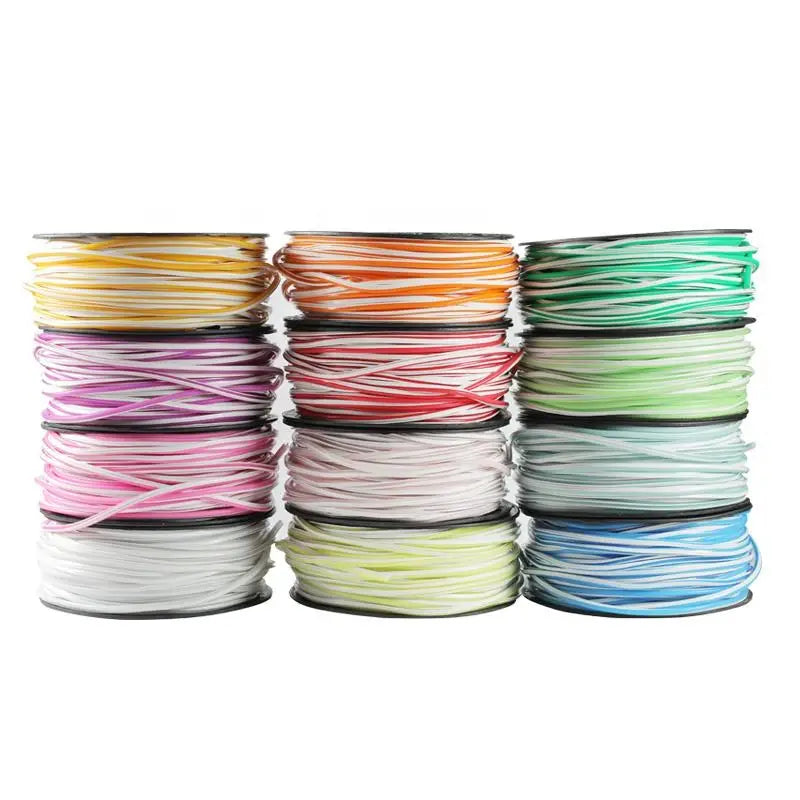

Products Description

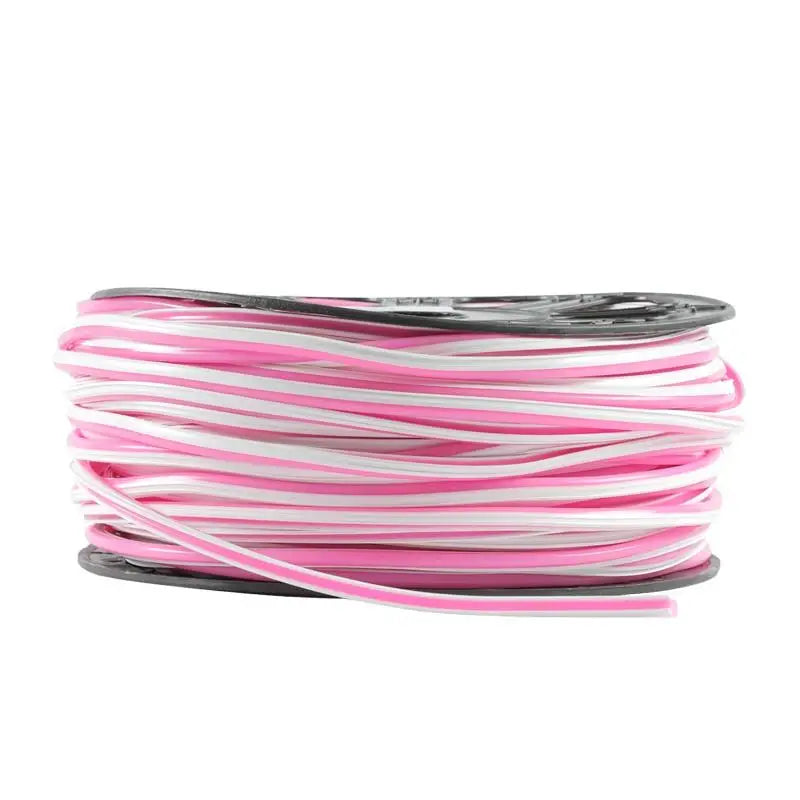

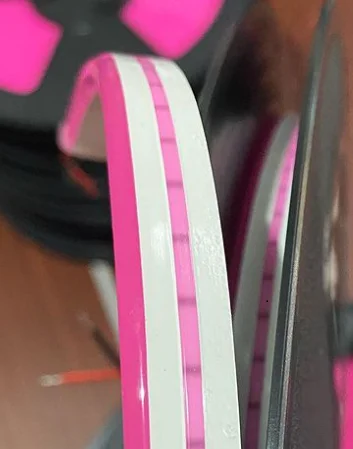

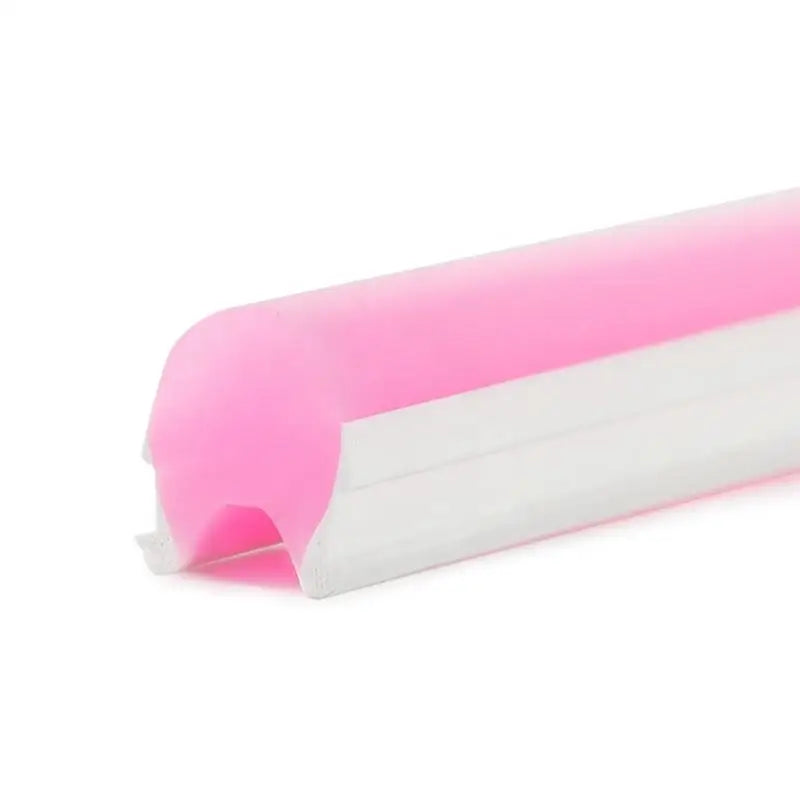

Product name	Silicone tubes
Size	6/8/12mm
MOQ	100 meters/Color

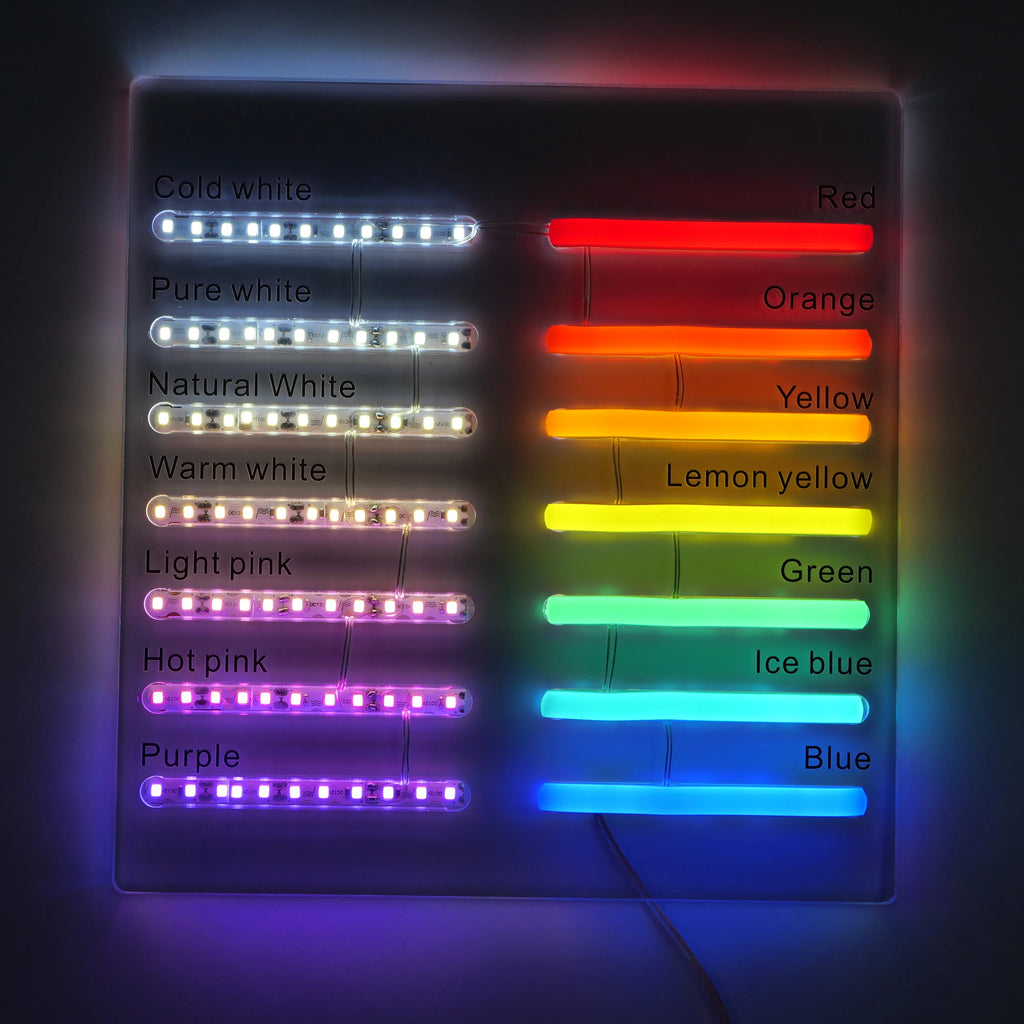

Color(11 types)	White/Green/Light pink/Lemon yellow/Orange/Red/Yellow/Blue/Hot pink/Ice blue/Purple/Light pink

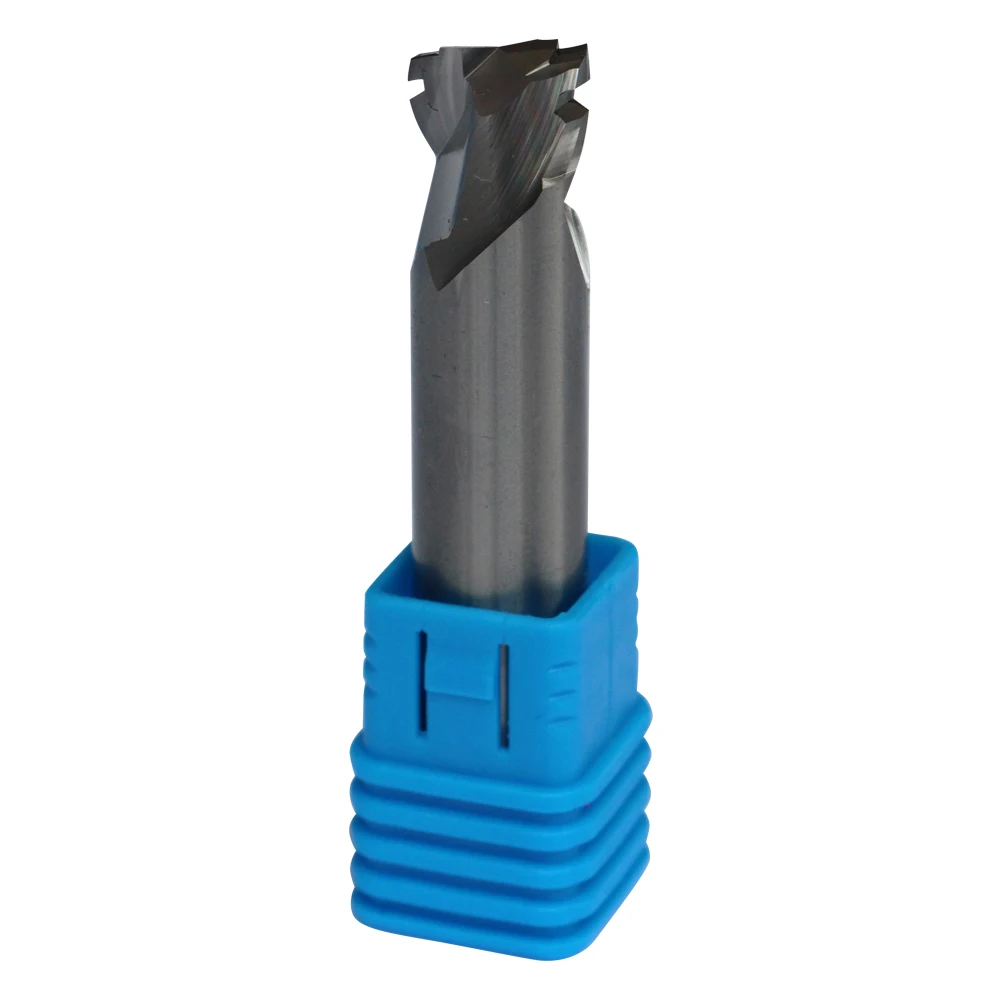

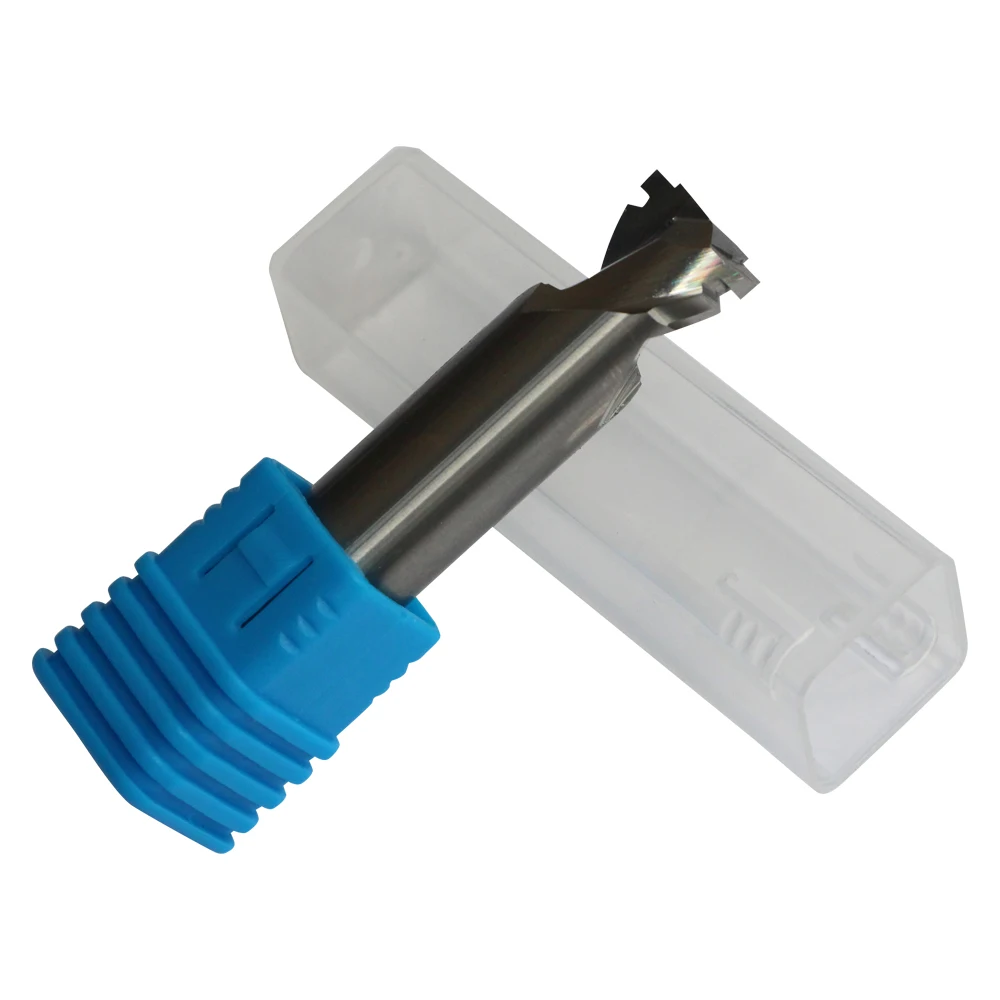

Milling Cutter

Size	Applicable silicone tubes size	Shank Diameter	Carving depth	Applicable acrylic thickness
6*4.2mm	6mm tubes	6mm/10mm	4.2mm	5mm
6*5.8mm	6mm tubes	6mm/10mm	5.8mm	7mm
8*4.2mm	8mm tubes	6mm/10mm	4.2mm	5mm
8*5.8mm	8mm tubes	6mm/10mm	5.8mm	7mm
12*5.8mm	12mm tubes	6mm/10mm	5.8mm	5mm

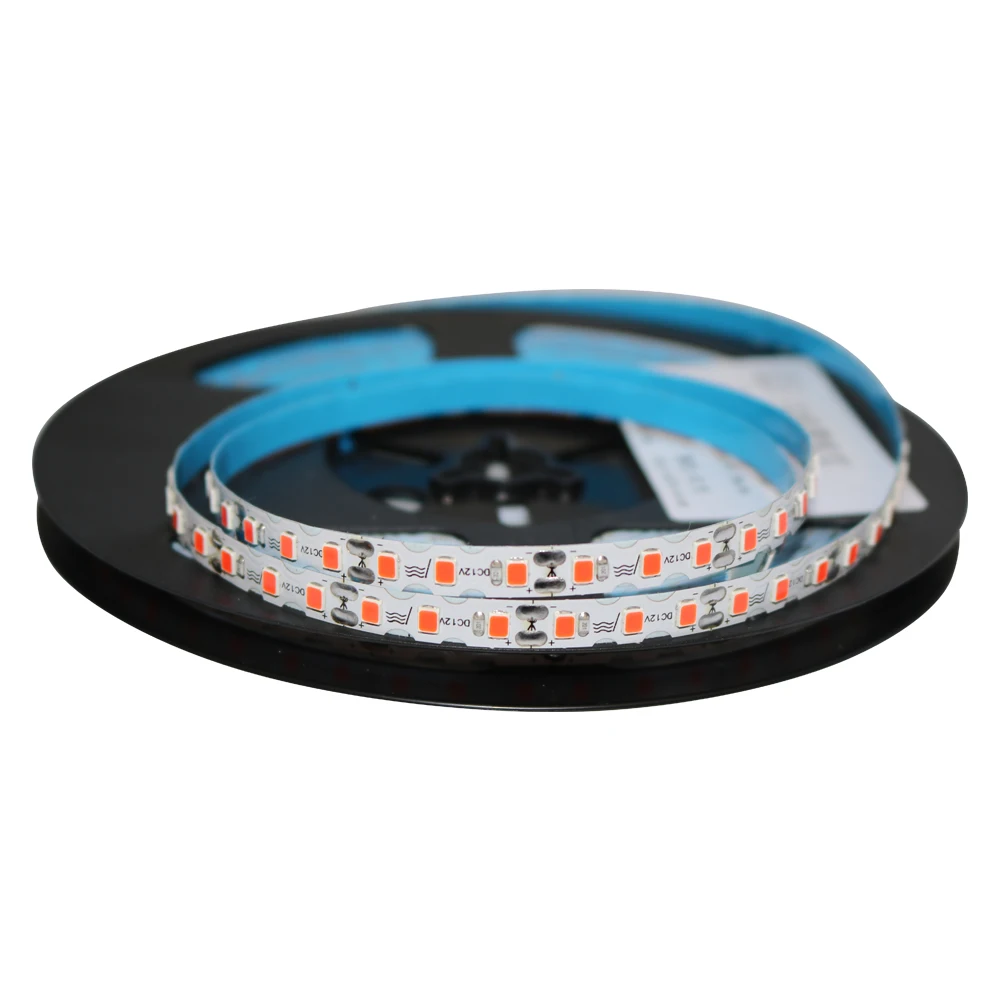

led strips

Voltage	DC 12V	DC 5V	DC 24V
Package	10m/roll	10m/roll	10m/roll
Led quantity	120 led/M	120 led/M	120 led/M
Cut length	2.5cm/1cm	2.5cm	5cm
Power	8W/M	8W/M	8W/M
PCB width	6.7mm	6.7mm	6.7mm
Color	14 types	14 types	9 types

Waterproof glue

705 Glue

Package:50g/bottle

Single component

Curing time:20-40 minutes

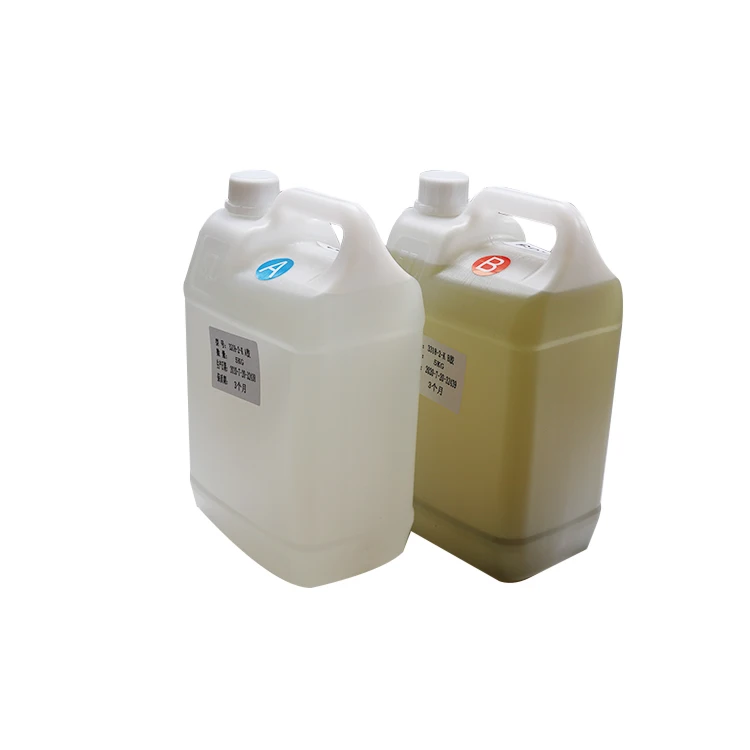

AB glue

Package:10KG/set

Two components

Curing time:6-8 hours

Accessary

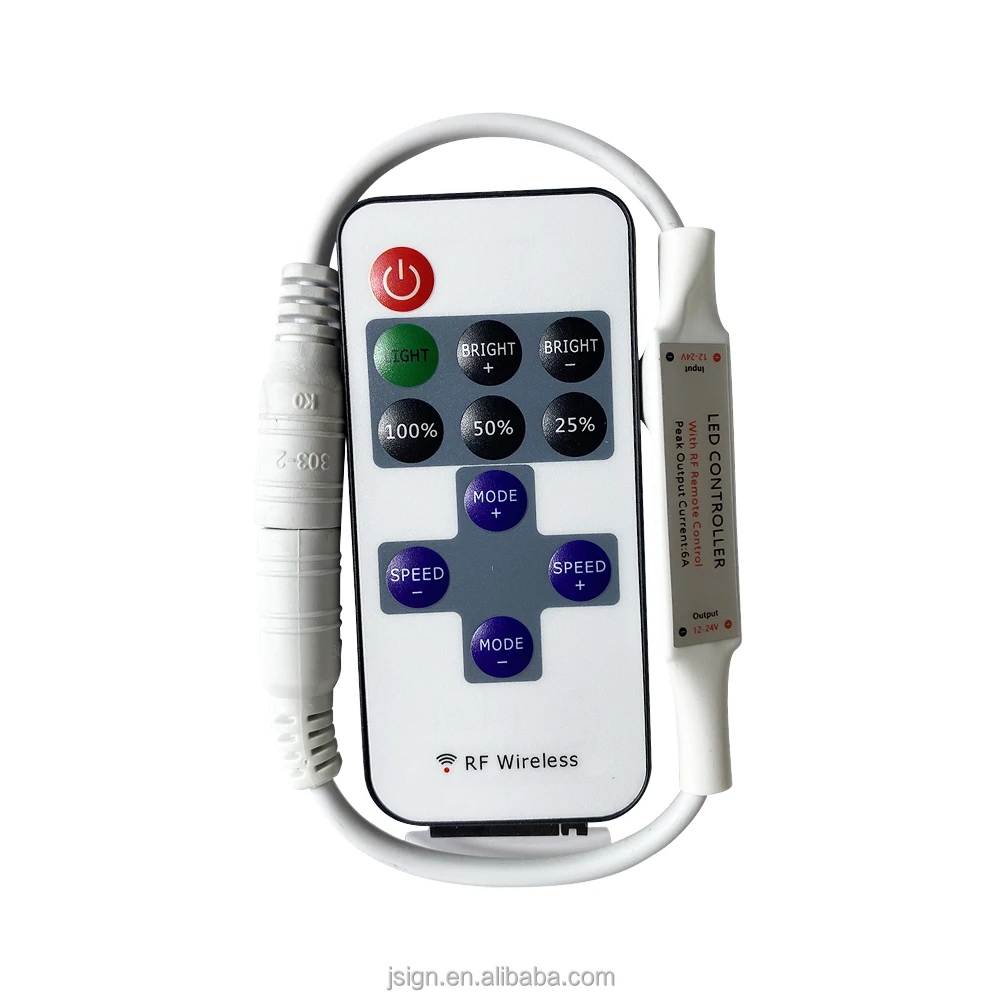

Remote dimmer

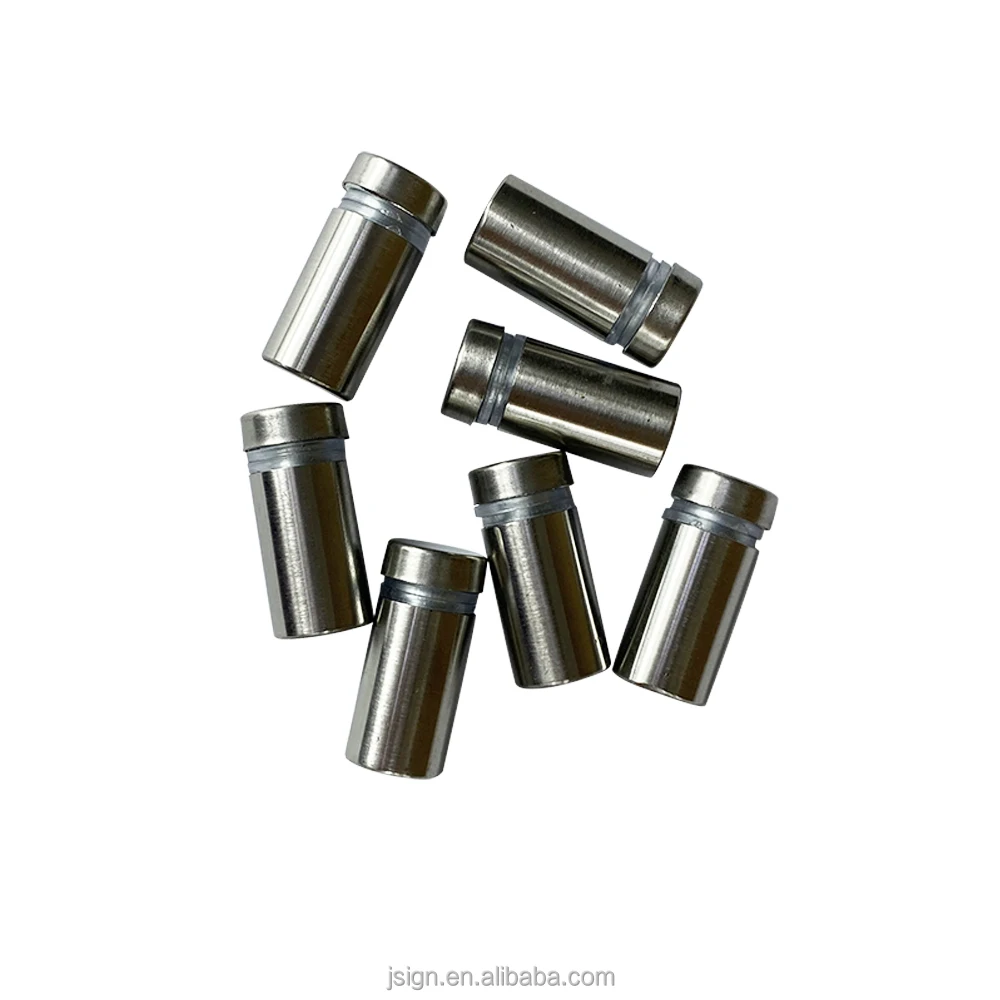

Wall mounted sapcers

Hanging accessaries

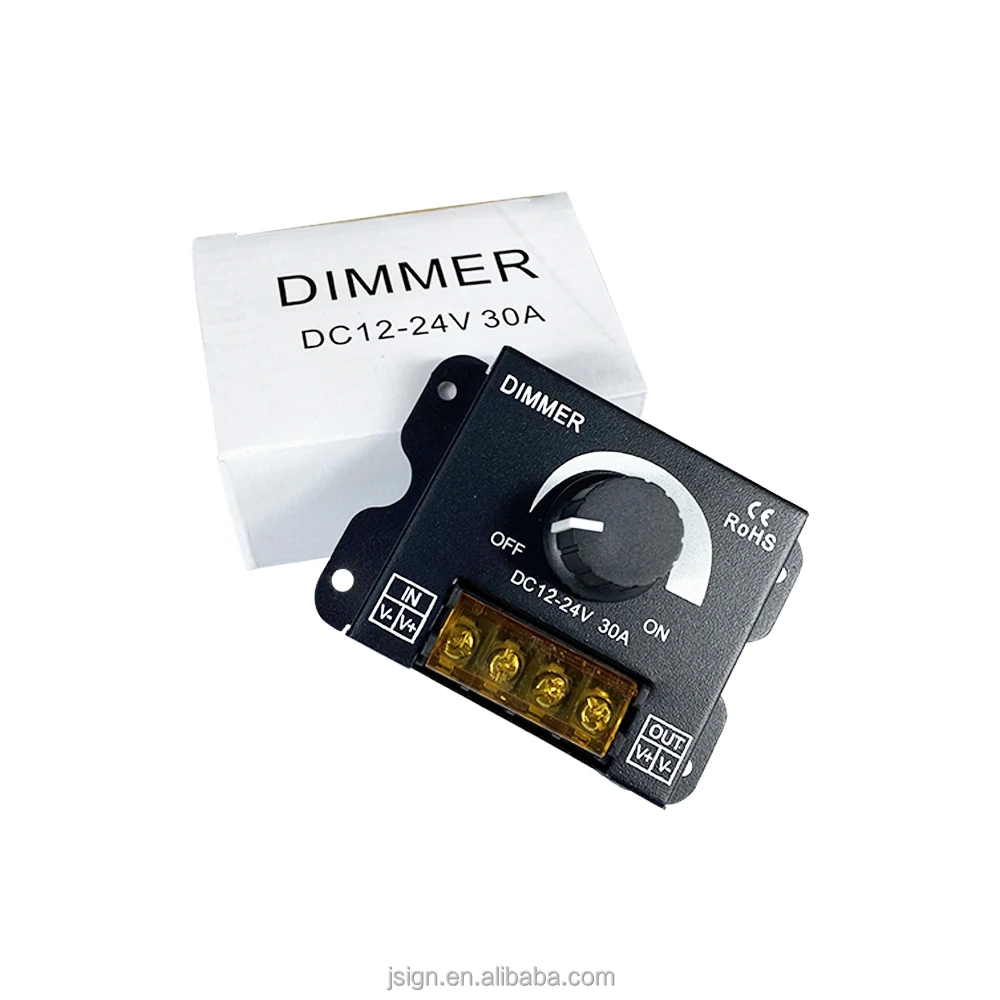

Manual dimmer

DC connector

Power supply

Why Choose Us

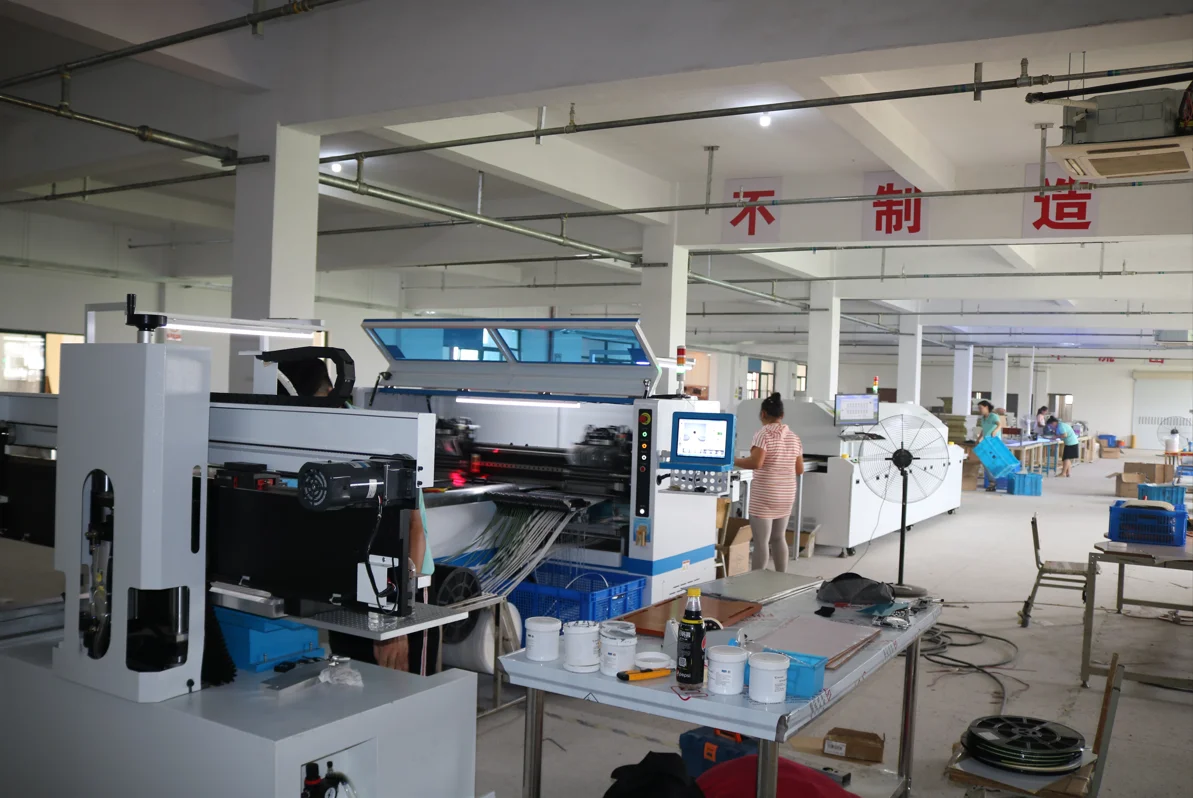

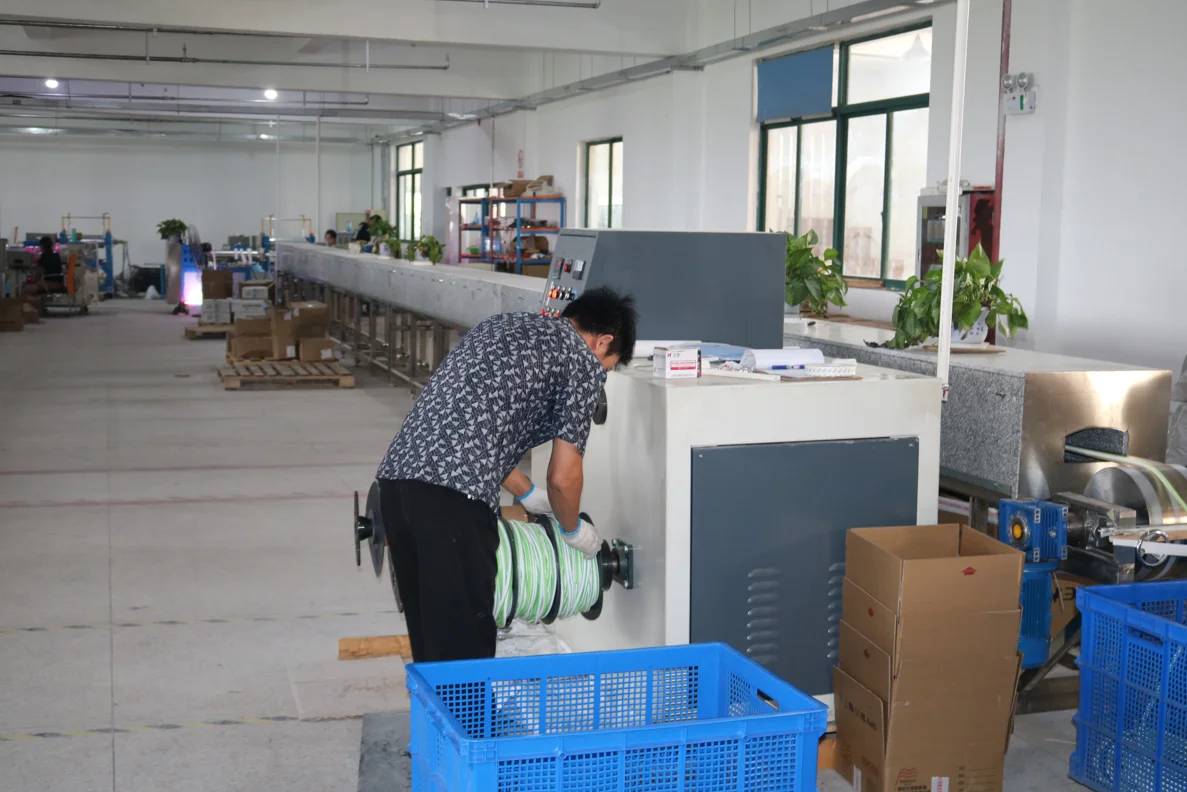

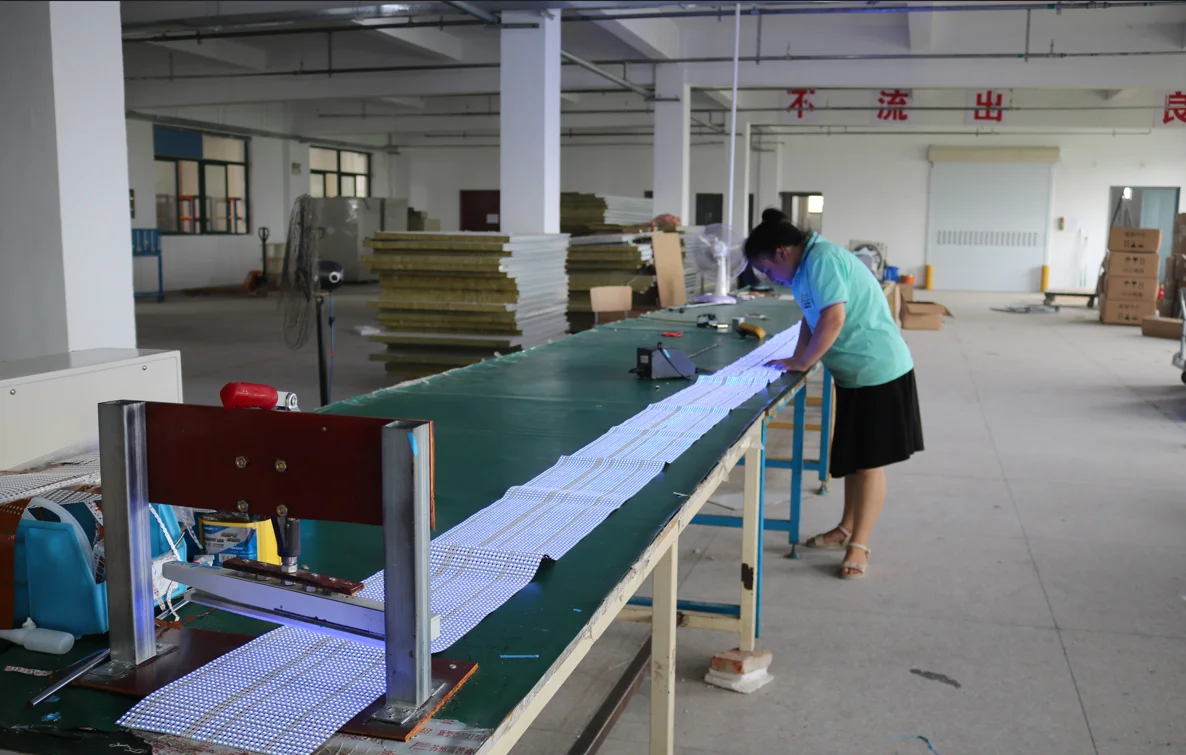

We have own two production lines of silicone tube extrusion and two LED strips, with a daily supply of 30,000 meters. we only focus on the 2nd generation of neon material production research and development, better service more professional.

Led neon production department

In addition to silicone tube extrusion and LED strip production lines, we also have a production department for finished neon lights. We are familiar with everything from the carving files, engraving, laying led strips, install silicone tube and final products.

That's why we can solve the problems from clients.

Because the focus so professional.

Drop shipping support

Basic kit

Clients can test from this small basic kit, no MOQ limit. Don't need high cost to check a new technology!

FAQ

1.How efficient are the workers in this new process?
install silicone tubes: 200-300meters/day/worker
lay led strips: 100meters/day/worker

2. What kind of backboard do you use mostly? and which thickness?
matt black 17mm forex board/5-8mm acrylic/ 7mm Polystyrene which is lower cost than acrylic.

3. How do you make outdoor neon signs?
We pour liquid AB glue into the grooves, then install silicone tubes right away. After 6-8 hours, it will be curing. We have
detailed videos which can be shared.

4. Why it doesn't need glue?
We need to carve the backboard with customized milling cutter,
then the buckle on the silicone tube is perfectly stuck with the carving groove,so glue is not needed.

5. I'm a beginner, do you have technical support?
Never worry about this point, we provide process teaching from making files to finished product!
