SPECIFICATIONS

After-sales Service Provided: Remote video guidance

brand name: CHEEBO Technology

condition: New

dimensions: 1000*1400*1680mm

max. welding thickness: 0.3mm

place of origin: Guangdong, China

power (kw): 1.5kw

rated capacity: 100kVA

usage: Spot Welding

voltage: AC220V50-60HZ

warranty: 1 Year

weight (kg): 330 KG

Product Overview

Top configuration

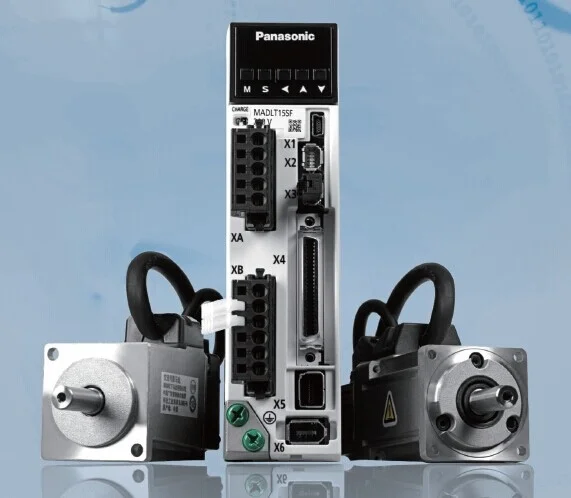

Japan Panasonic servo motor

Fast, intelligent, and simple, with low maintenance requirements and high rotational speed, small inertia, making it easier to improve the rapid movement of the machine

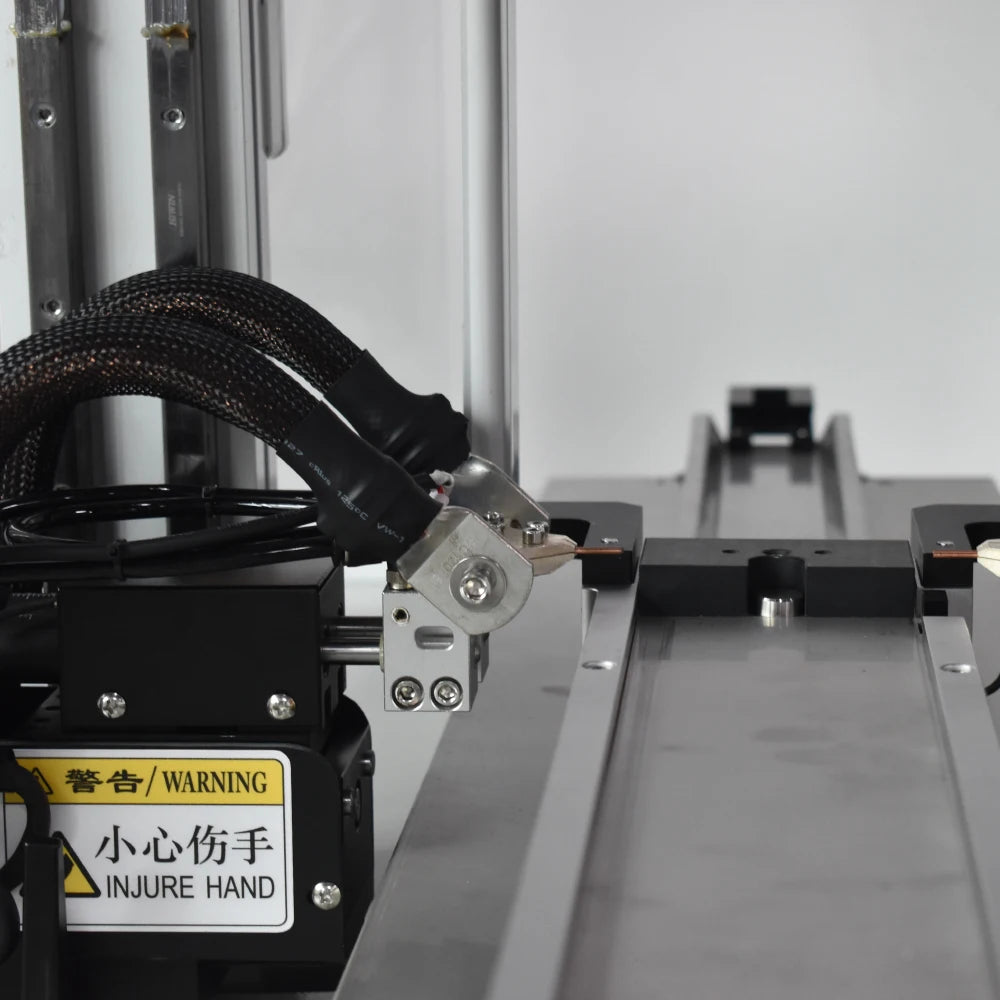

HIWIN screw guide rail

Using rolling guide rails, with low friction and high positioning accuracy, it can maintain high-precision operation for a long time. Low noise, smooth sliding, and durable.

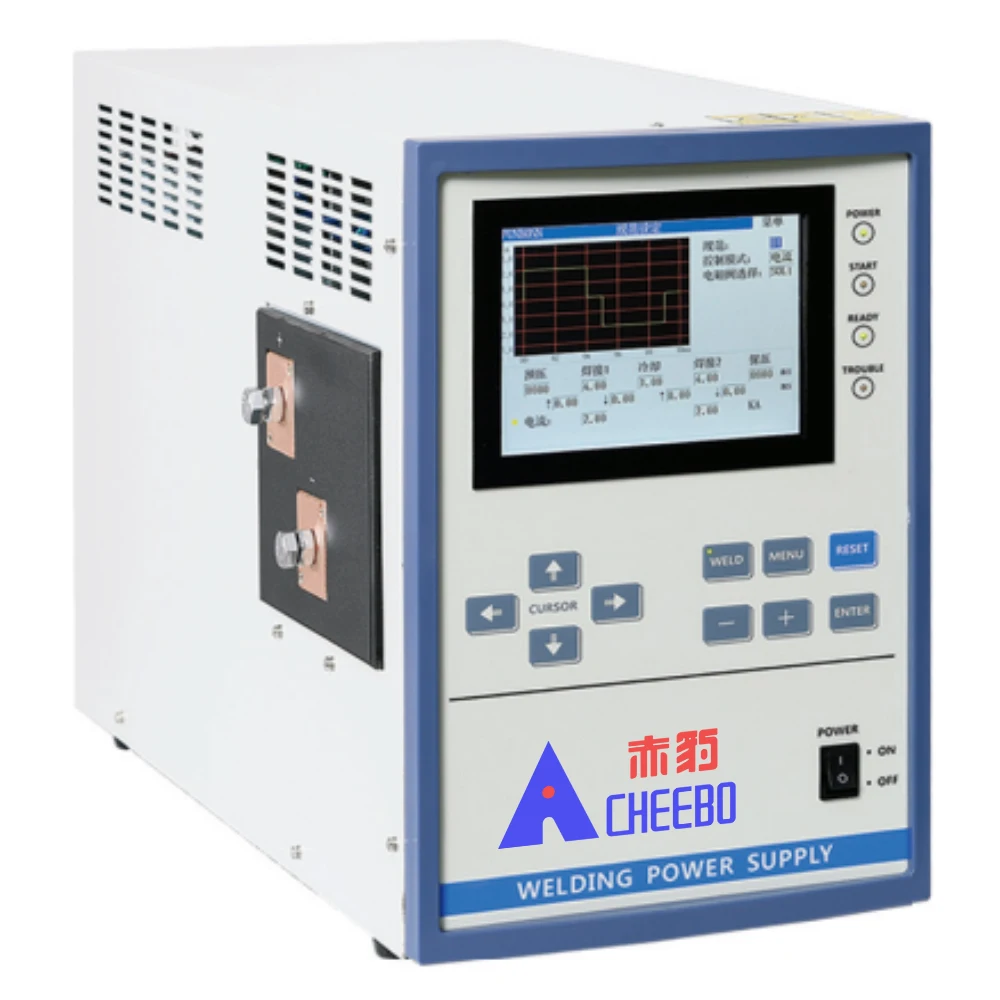

Transistor welding power supply

Fast output current speed, stable energy output, closed-loop control, automatic alarm function for virtual welding and missed welding

7-inch Velcro touch screen

Human machine interaction, simple operation. Durable and not easily damaged

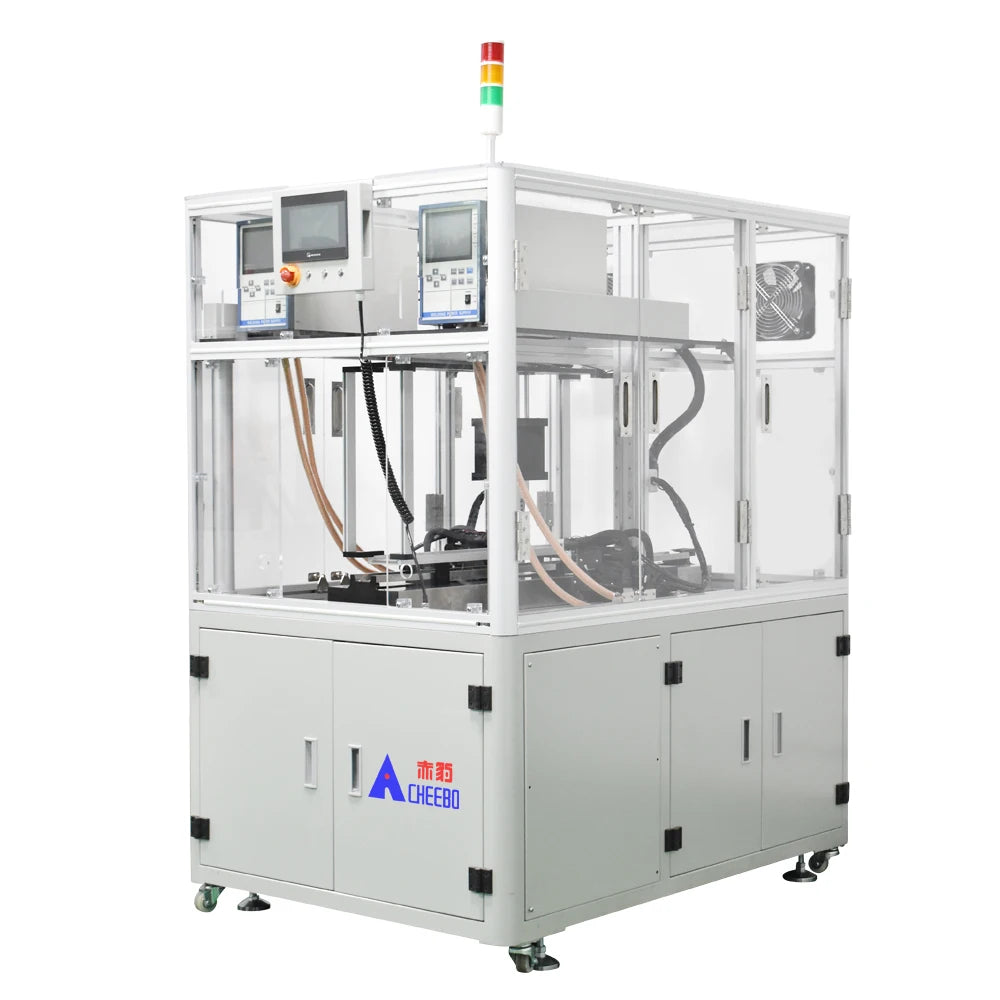

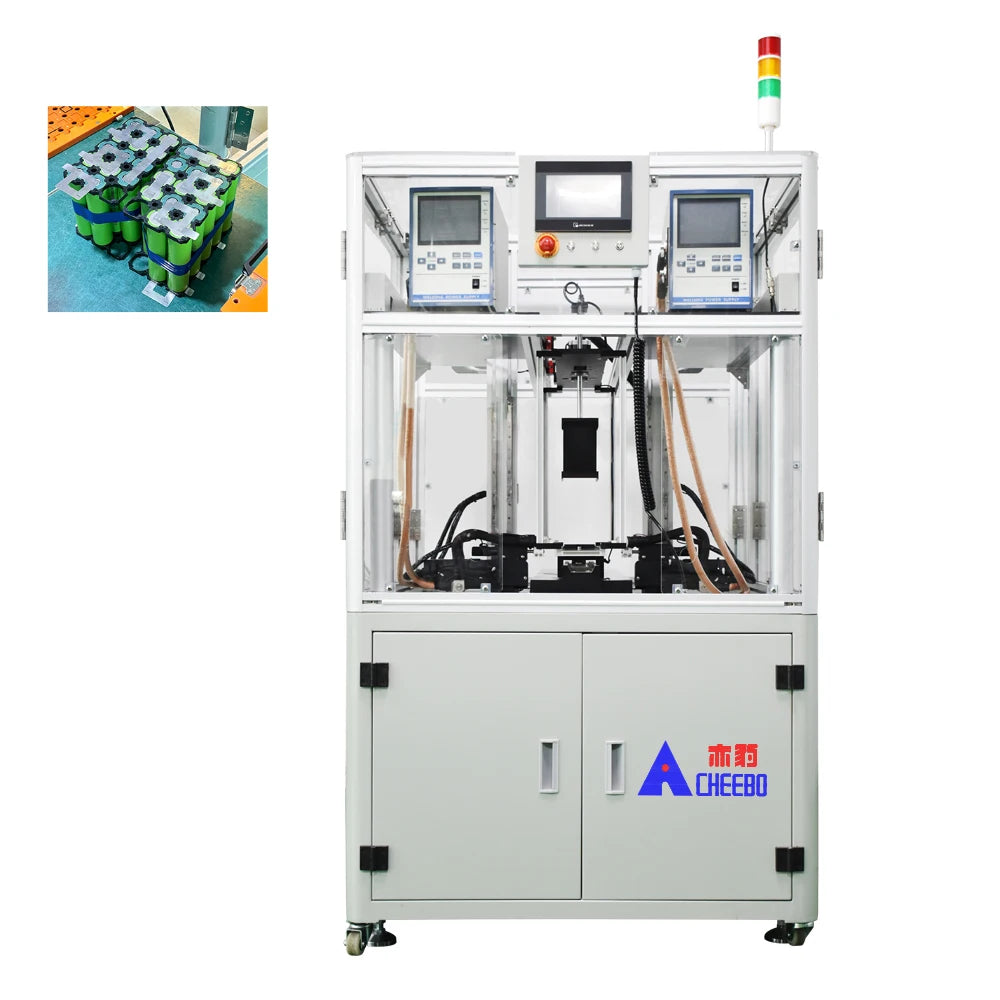

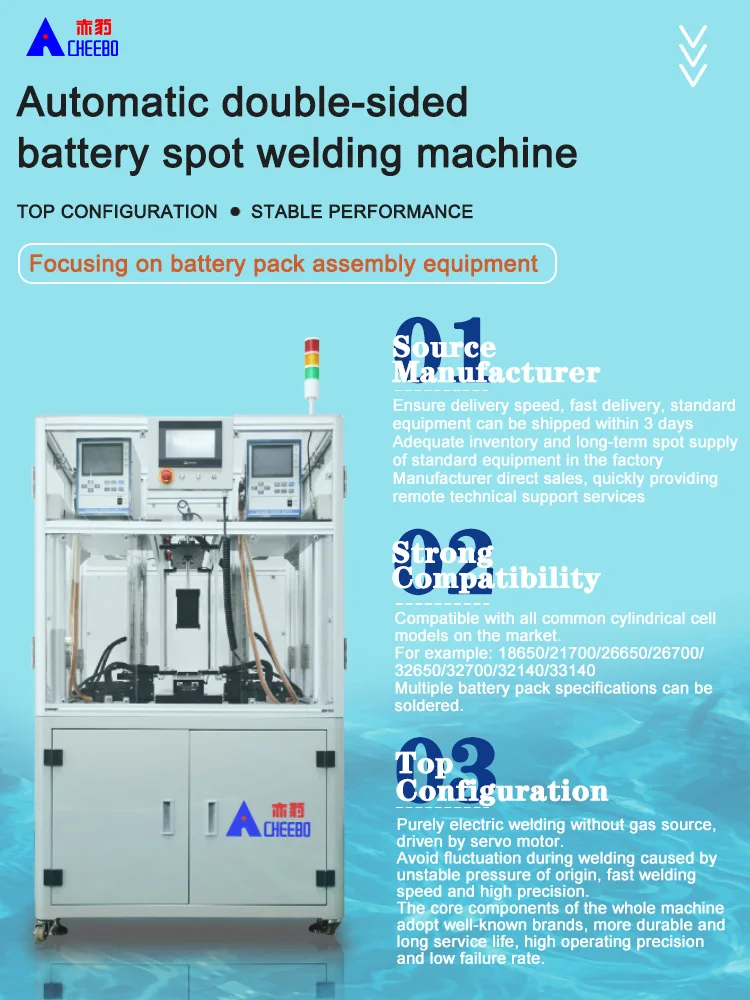

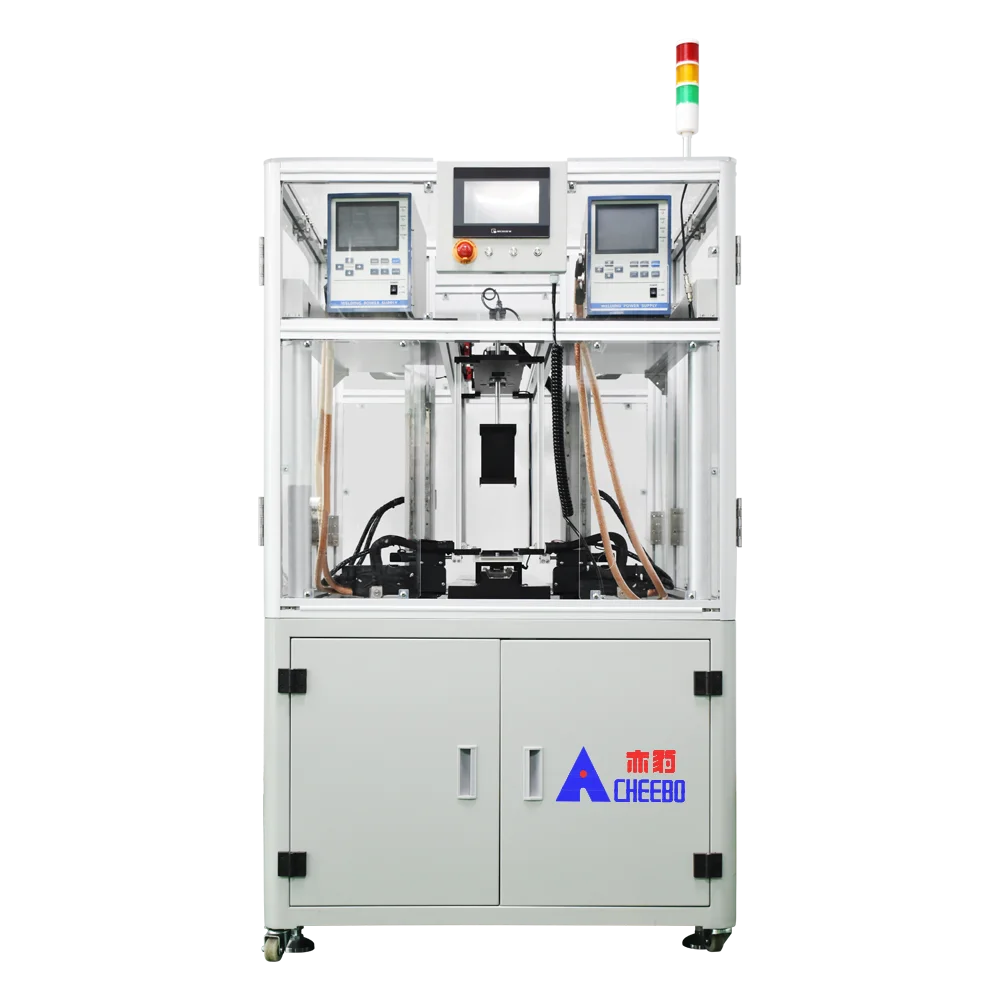

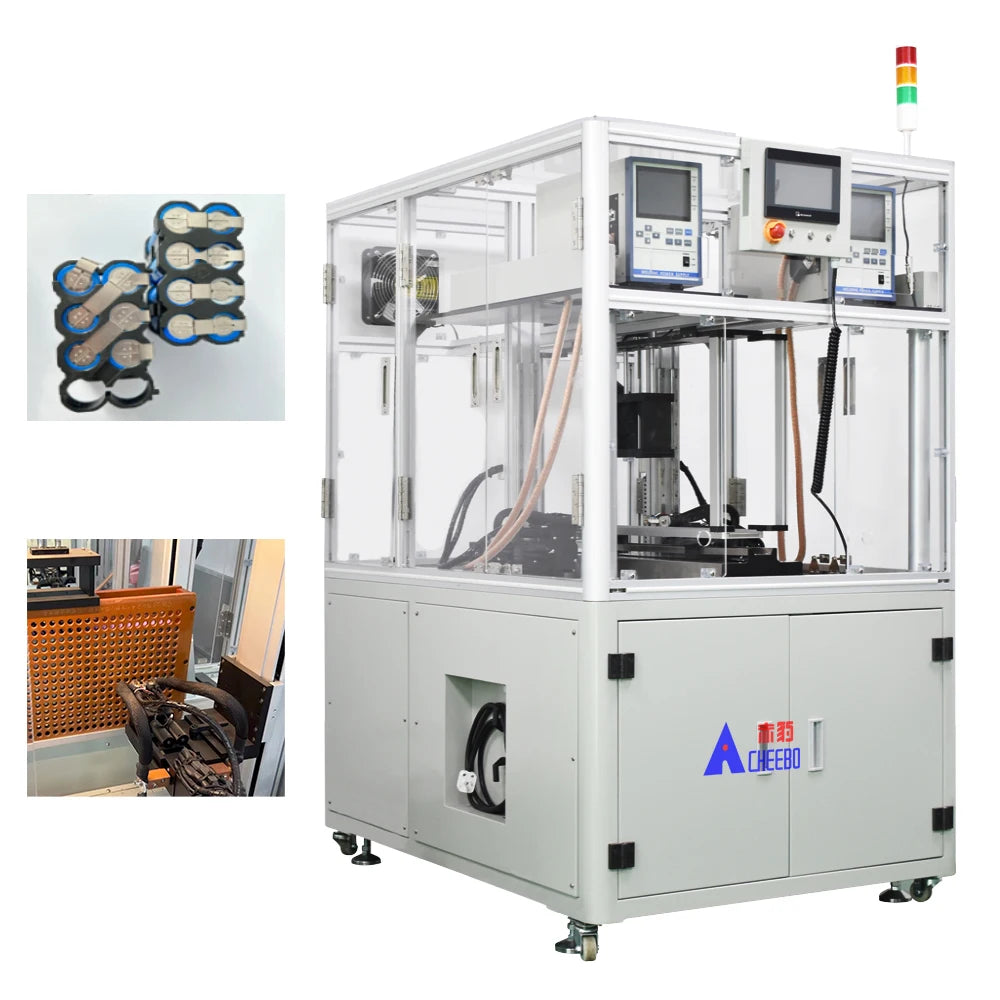

Equipment name	CBMT-6040 double-sided automatic spot welding machine
Comprehensive aging	3600PCS/H
Equipment weight	330KG
Welding thickness	0.2mm exceeds the need for slotting
Equipment power supply	220V50/60HZ
Equipment power	2KW (including power supply)
Equipment stroke	600*400 (mm) about 760 18650 cells
Welding power source	transistor
Power consumption	0.8KW when busy, 0.2KW when idle
Movement mode	automatic continuous
Electrode Material	Alumina Copper
Cooling method	forced water circulation cooling
Dimensions	1000*1400*1680 (mm)
Application Scenario	Mass Welding of Cylindrical Batteries
Power supply current	5000A

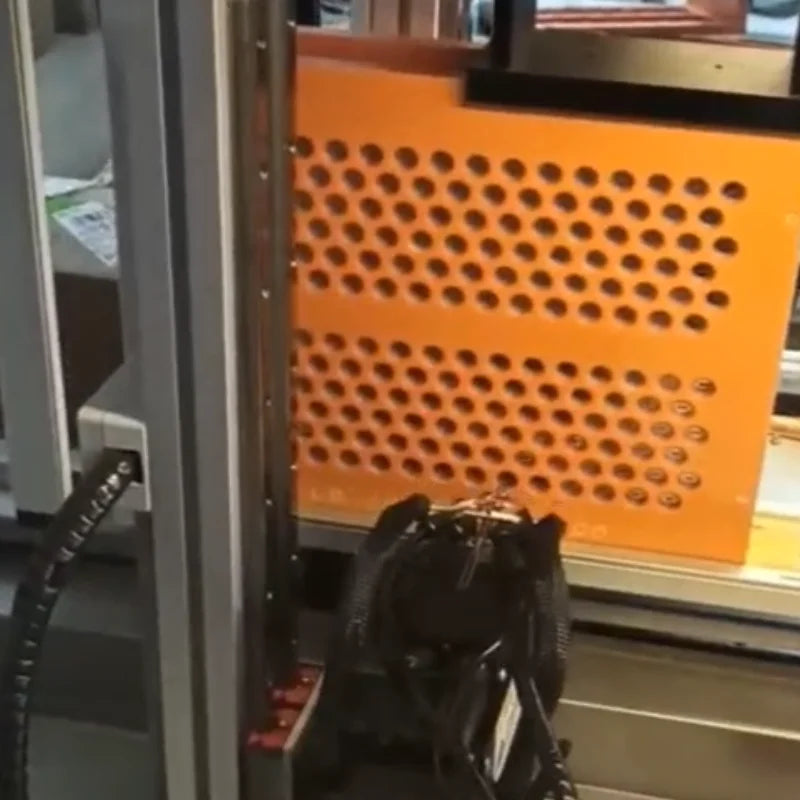

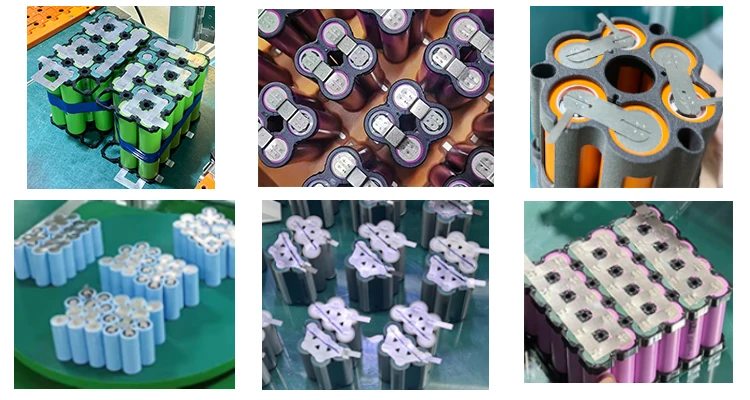

Welding effect drawing

Company Profile

FAQ

Q: I don't know which one suits me? A: Please provide us with the following information 1) Battery model and type. 2) Welding materials and welding thickness We have extensive sales experience and can provide you with advice.

Q: How to install and run the machine? A: Our technicians have already installed the machine before shipping. For the installation of some small components, we will randomly send detailed training videos and user manuals. 95% of customers can self learn.

Q: What is your minimum order quantity? A: We do not have a minimum order quantity. Whether it's 1 order or 100 orders, we will wholeheartedly support you.

Q: How is your factory doing in terms of quality control? A: Quality first. Each unit will undergo over 20 tests. After all tests pass, our QC will test the welding performance.

Q: What should I do if there is a problem with the machine? A: If you encounter such a problem, please contact us as soon as possible. Do not attempt to repair the machine yourself or by others. We will respond as soon as possible within 24 hours to resolve your issue.
