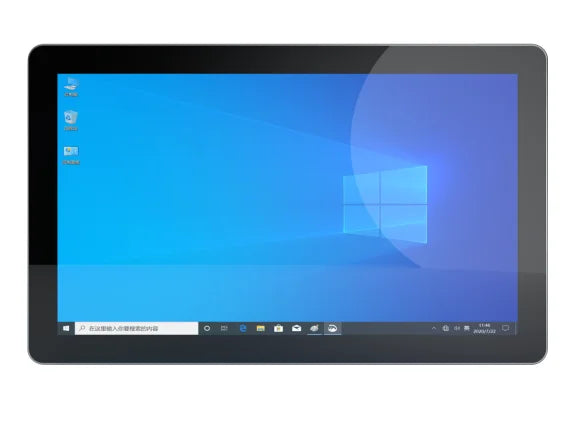

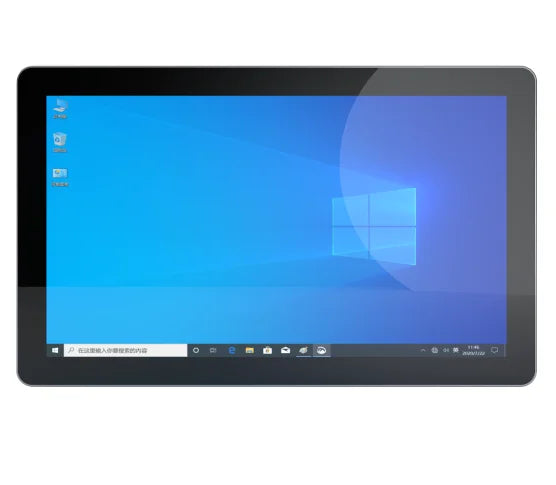

18.5 Inch HMI Industrial Touch Screen Monitor PC Running Windows System with Intel J4125 CPU and I3/I5/I7 Series
SPECIFICATIONS
CPU: Intel J4125 and I3/I5/I7 series
Display: 18.5"high-brightness LCD screen , 300cd/m2 brightness
Fanless: Fanless design
Memory: 1*260pin DDR4
Operating system: Windows7,Windows10,Windows11,Ubuntu etc
Power Supply: 12V/5A(12V/8A for the 10th-generation CPU solution)
Resolution: 1920x1080
SATA: 1xMSATA 1xSATA1 port 1xM.2 port
Touch screen: Multipoint capacitive touch
WIFI: Optional
after-sales service: Call Center and on-line Technical Support,Onsite Training and Inspection,Free Spare Parts,Return and Replacement,Repair,Others,None
aspect ratio: 16:9
brand name: PONTRON
color: Silver
interface type: Usb
package: Yes
place of origin: Guangdong, China
private mold: Yes
products status: New
series: For Business
type: Capacitive
warranty(year): 3-Year
« 18.5’’ industrial touch panel pc running Windows7,Windows10,Windows11,Ubuntu etc
« Mother board with CPU Intel J4125 and I3/I5/I7 series
« Memory: 1*260pin DDR4 upto 2400 SODDIM,supports Max16 GB

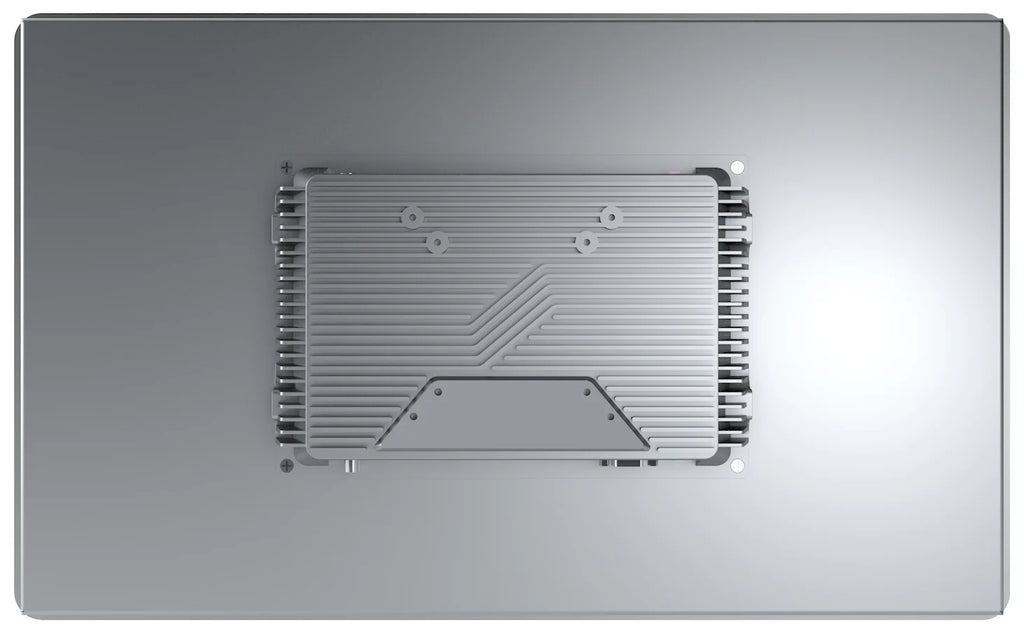

« Aluminum-magnesium alloy top cover and Fanless design
« 18.5’’ Multi-point capacitive touch screen
« IPPC-A1850TU is an industrial touch panel PC with 18.5″ high brightness LCD, With Multi-point capacitive touch screen, the motherboard adopt Intel J4125 and Core 6th, 7th and 10th generation I3/I5/I7 series processors.It comes with 3*RS232, 2*RS485, 6*USB, 1*HDMI,8*GPIO etc,12V power input ,Aluminum-magnesium alloy top cover and Smart fanless-design.
« It has Installation methods: Embedded, panel type, wall-mounted, VESA standard etc. and The product structure is very compact and robust with better vibration and resistance.
« IPPC-A1850TU is a cost-effective industrial grade touch panel PC, can be widely used in the communication, control terminal of the electric power, manufacturing, finance, traffic monitoring etc.
|
CPU |
Intel® Celeron® Processor J4125 quad-Core2.0Ghz;I3-6100U dual-core2.3Ghz;I5-6200U dual-core2.3~2.8Ghz;I7-7500U dual-core2.7~3.5Ghz;(i3-10110U dual-core2.1~4.1Ghz;i5-10210U quad-Core1.6~4.2Ghz;i7-10510U quad-Core1.8~4.9Ghz) (Optional) |
|
Display |
18.5”high-brightness LCD screen , 300cd/m2 brightness |
|
Resolution |
1920x1080 |
|
Memory |
1*260pin DDR4 upto 2400(10th gen CPU upto 2666) SODDIM, upto 16G (10gen CPU upto 32G) |
|
SATA |
1xMSATA interface, support 32G/64G /128G /256G/512G/1T MSATA SSD |
|
1xSATA1 port, supporting standard SATA hard drives |
|
|
1xM.2 port, support M.2 hard disk/Video acceleration card, etc. (Optional) |
|
|
Network interface |
1xGigabit Ethernet port |
|

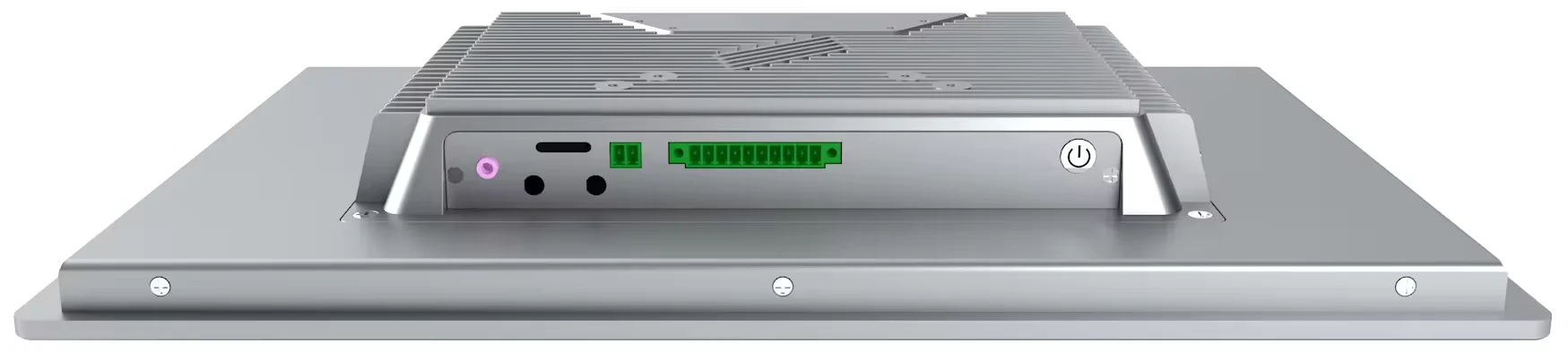

I/O |
1xHDMI |
|
6xUSB/4xUSB(standard 4xUSB3.0,2xUSB2.0 ) |
|
|
1xRJ45/2xRJ45 |
|
|
DB9-1(RS232) |
|
|
3xRS232(com6);3xRS232(com5);1xRS485(com4);1xRS485(com3) |
|
|
1xLINE-OUT,1xMIC-IN |
|
|
8*GPIO(optional) |
|
|
12V Power input |
|
|
WIFI |
Optional |
|
Touch screen |
Multi-point capacitive touch |
|
Power Supply |
12V/5A(12V/8A for the 10th-generation CPU solution) |
|
Power consumption |
17.4W peak power consumption 36W;(10th generation CPU scheme peak power consumption up to 75W) |
|
Watch dog |
Support hardware reset function (256 level, 0~255 seconds) |
|
buzzer |
Built-in , provides function control sound; |
|
Operating system |
Windows7,Windows10,Windows11,Ubuntu etc |
|
Fanless |
Fanless design |
|
Dimension |
470.50x290.10x54.60mm |
|
Installation |
Embedded ,Panel type, wall- mount, Table, bracket etc |
|
Net Weight |
3.8Kg |
|
Gross Weight |
Abt 5.5Kg |
|
Operating temp |
-20℃~60℃ |
|
Operatin humidity |
5%-95%RH Relative humidity, non-condensing |
Ordering Information :
|
IPPC- A1850TU-J4125 |
18.5″Industrial Panel PC,w/CPU: Intel® Celeron® Processor J4125quad-Core2.0Ghz;W/RAM:16G, w/SATA 32G,Support 12Vpower input, W/18.5’’ Multipoint capacitive touch screen, Support WIN7/10/11/Ubuntu etc. |
|
IPPC- A1850TU-i3 |
18.5″Industrial Panel PC,w/CPU: I3-6100U dual core 2.3Ghz; W/RAM:16G, w/SATA 32G,Support 12Vpower input, W/18.5’’ Multi-point capacitive touch screen, Support WIN7/10/11/Ubuntu etc. |
|
IPPC- A1850TU-i5 |
18.5″Industrial Panel PC,w/CPU:I5-6200U dual core 2.3Ghz; W/RAM:16G, w/SATA 32G,Support 12Vpower input, W/18.5’’ Multi-point capacitive touch screen, Support WIN7/10/11/Ubuntu etc. |
|
IPPC- A1850TU-i7 |
18.5″Industrial Panel PC,w/CPU: I7-7500U dual core 3.5Ghz; W/RAM:16G, w/SATA 32G,Support 12Vpower input, W/18.5’’ Multi-point capacitive touch screen, Support WIN7/10/11/Ubuntu etc. |
