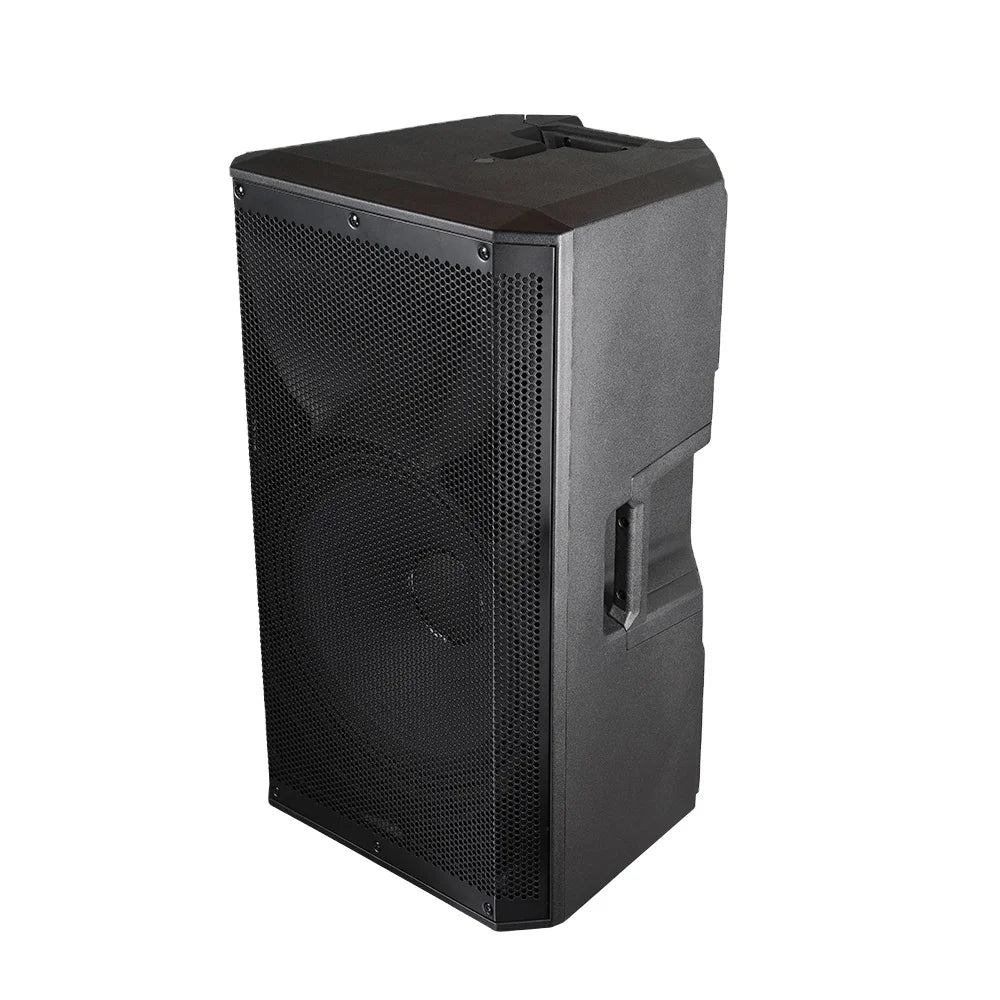

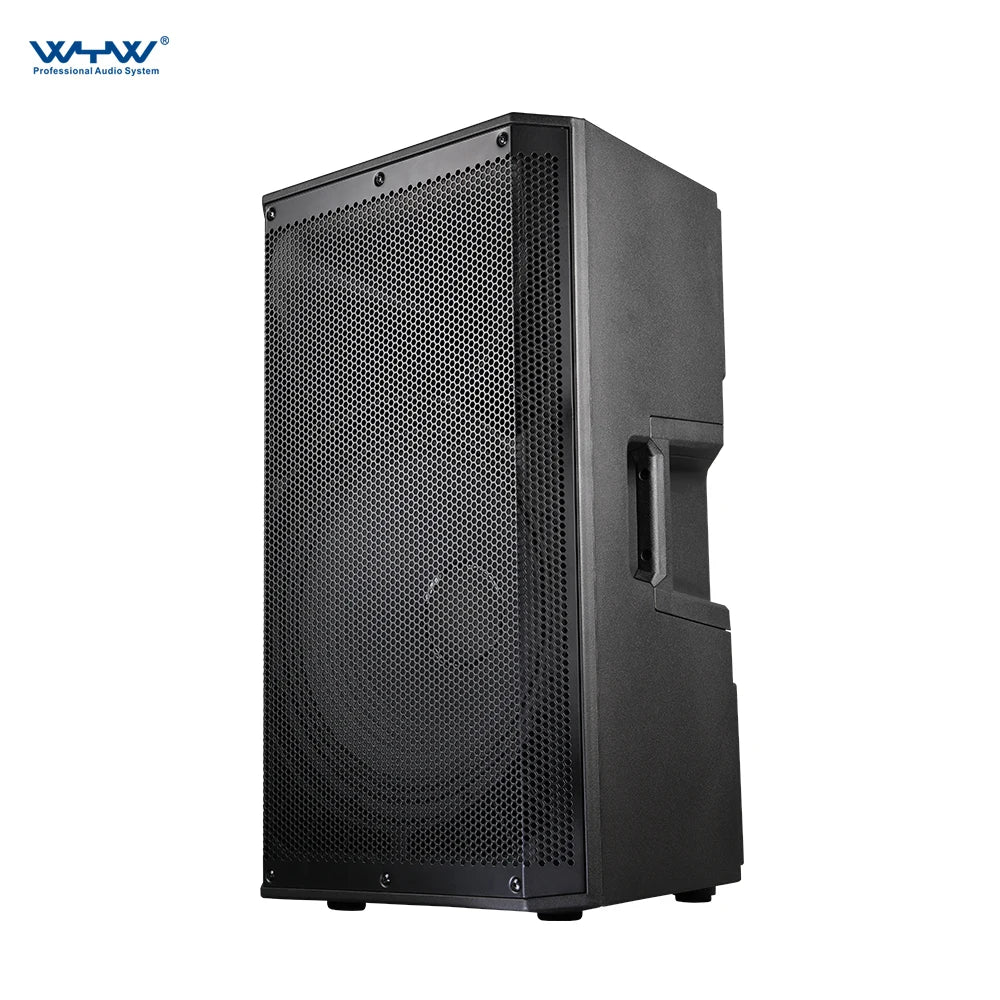

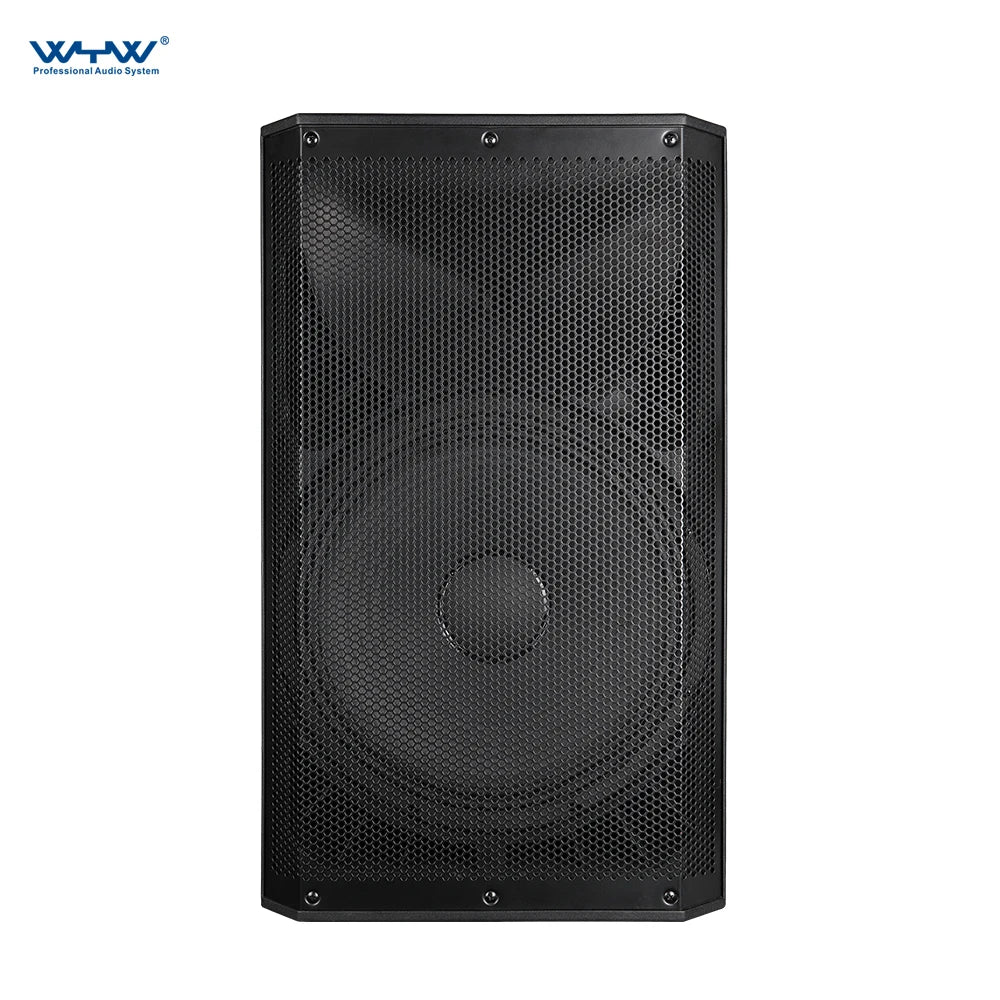

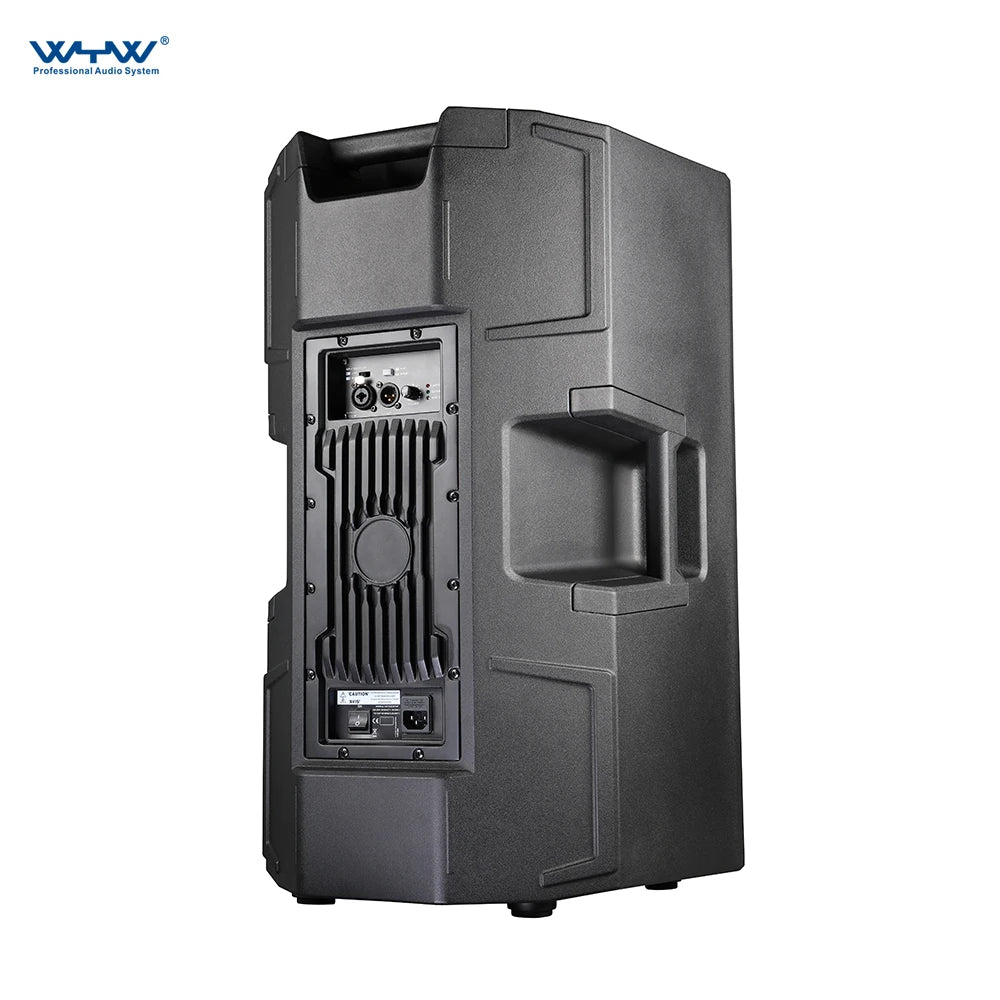

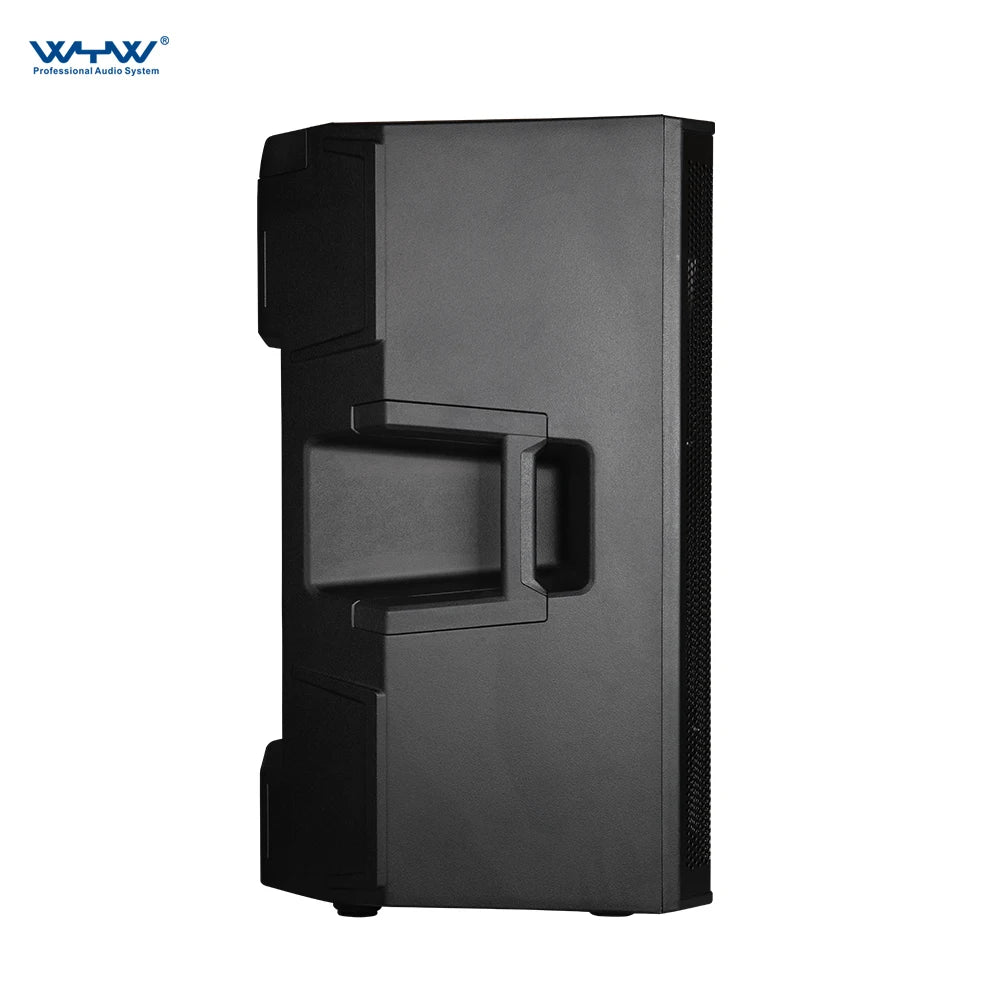

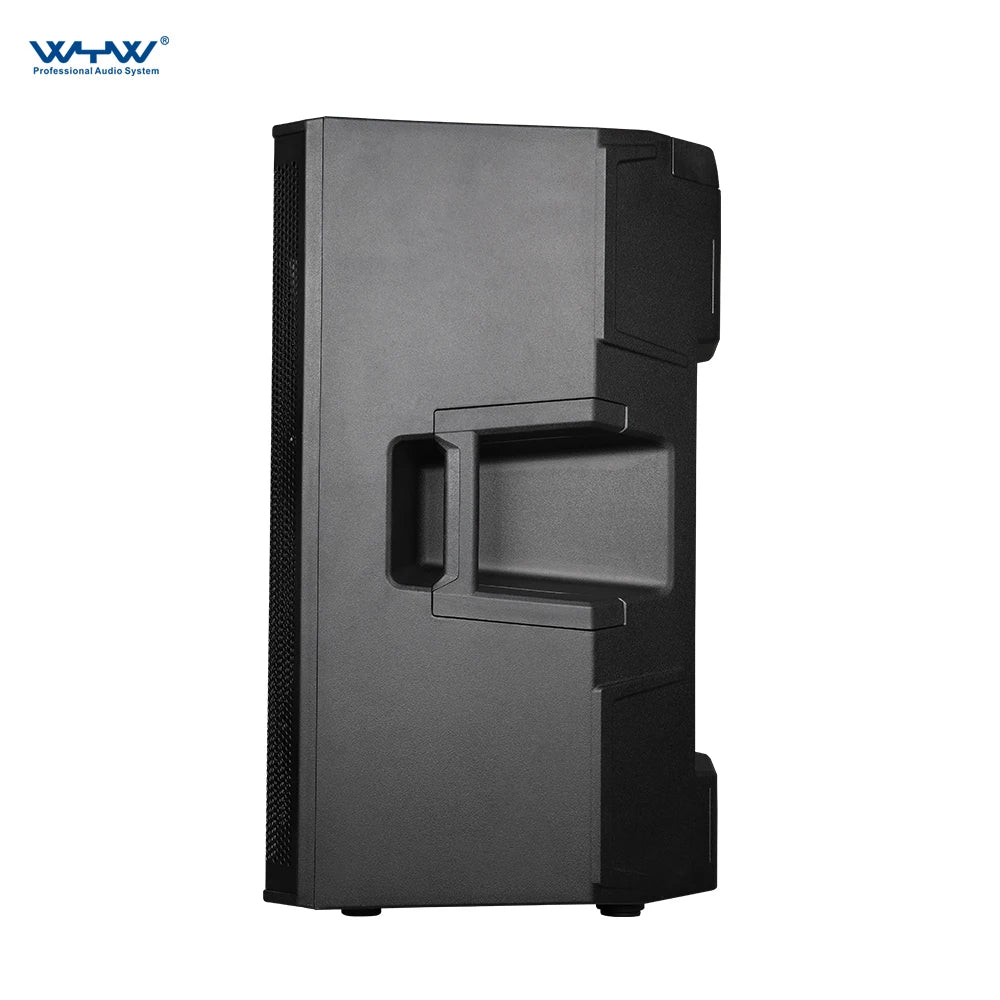

15 Inch Professional Full Frequency Audio Class D Active Loudspeaker
SPECIFICATIONS
Configuration: Multipurpose 12 inch , 2-way
Controls: Power, LINE/MIC switching, Flat/Boost, volume control
Dimensions (HWD) mm: 711x420x405
Finish: Black or white textured paint
Grille: Black or white powder coated 16 gauge steel
HF: 44 core 100 magnetic(44 mm voice coil, 100 mm horn diameter)
Indicators: Lmiter, Signal, Status
Input Impedance: XLR: 20 kΩ balanced / 10 kΩ unbalanced
Material: Symmetrical, plastic casing
Power Output: 500W + 500W Class D continuous
Radio function: No
Shell Material: Plastic
brand name: WYW
connection type: Electric Wire
dimension: 711 x 420 x 405 mm
model number: DKG915S-231127-01
output power: 500w+500w@4ohm
place of origin: Guangdong, China
power source: Other
the body material: Plastic
warranty: 3 months ~ 1 year
- 500W+500W watt power module
- 15" vented subwoofer
- High acoustic output (135 dB SPL peak)
- Frequency range down to 20 Hz (-10 dB)
- Threaded pole receptacle for free-standing applications.
| Configuration | Multipurpose 12 inch, 2-way |
| HF: | 44 core 100 magnetic (44 mm voice coil, 100 mm horn diameter) |
| Frequency Response (-6 dB) | 47 Hz - 18 kHz |
| Frequency Range (-10 dB) | 44 Hz to 20 kHz |
| Nominal Coverage | - |
| Maximum SPL (1 meter) | 135 dB peak |
| Amplifiers | |
| Power Output | 500W + 500W Class D continuous |
| Input Impedance | XLR: 20 kΩ balanced / 10 kΩ unbalanced |
| Controls |
Power, LINE/MIC switching, Flat/Boost, volume control |
| Indicators | Lmiter, Signal, Status |
| Connectors |
Balanced female XLR line level input, Balanced male XLR full range line level out, power connector AC In |
| Cooling | On demand, 100 mm variable speed fan |
| Amplifier Protection | Thermal limiting, output overcurrent, overtemperature muting |
| Transducer Protection | Thermal limiting, excursion limiting |
| AC Power Input | Universal power supply 110 V or 240 V, 50 or 60 Hz |
|
AC Power Consumption (1/8 of full power) |
100 VAC, 2.3 A 120 VAC, 2.01 A 230 VAC, 1.13 A |
|
Enclosure |
|
| Material | Symmetrical, plastic casing |
| Finish | Black or white textured paint |
| Grille | Black or white poweder coated 16 gauge steel |
| Dimensions (HWD) mm | 711×420×405 |
| Net Weight | 18.2 kg |
