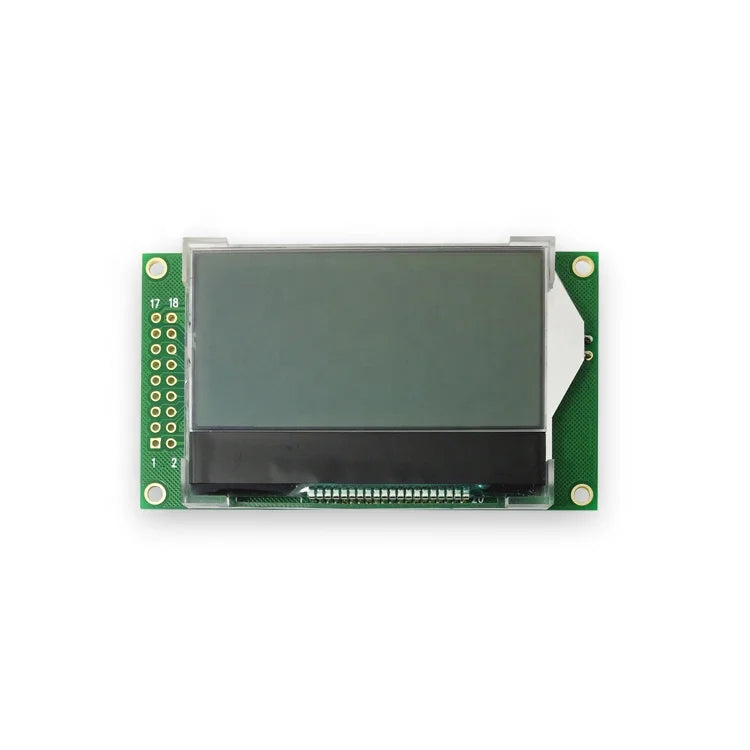

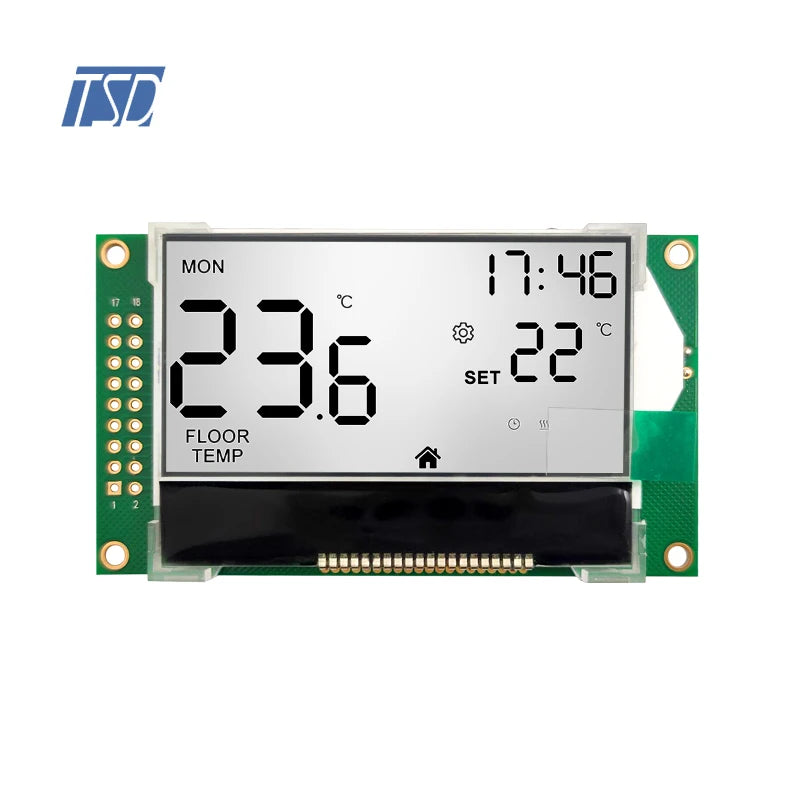

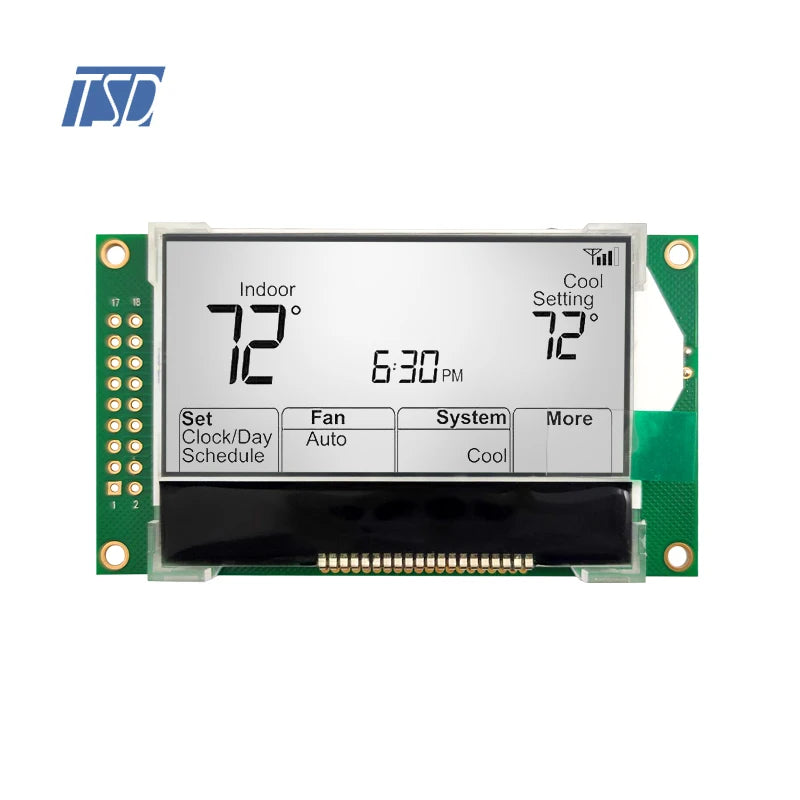

12864 Lcd Display Cog Lcd Character Fstn 128*64 128x64 FSTN Monochrome LCD Display Modules
$10.47 USD
SPECIFICATIONS
Active Area: 46.05x23.01mm
Backlight Type: LED
Backlight color: White color
Brand Name: TSD
Display Size: 12864
Display Type: FSTN
Dots pitch: 0.36(L)*0.36(W)
Driver IC: ST7567S-G4
Driver Ic: ST7567S-G4
Driver condition: 1/65 duty, 1/9bias
Interface Type: 6800/8080
LCD Type: FSTN Positive Transflective
Outline Dimension: 58.2x39x8.0mm
Place of Origin: Guangdong, China
Resolution: 128*64,128X64 dots
Supplier Type: Manufacturer
Type: COG LCD
Viewing direction: 6 O'clock
White color 128X64 cog lcd character fstn custom lcd
Product Description
Display type |
FSTN, positive, transflective |
Part No. |
TSG12864-1185-FFDLWS-R |
Resolution |
128xRGBx64 dots |
Outline dimension |
58.2x39x8.0mm |
Active Area |
46.05x23mm |
Viewing angle |
6 o'clock |
Driver IC |
ST7567S |
Driving Method |
1/65 duty, 1/9 bias |
Operation temperature |
-20℃ to +70℃ |
Storage temperature |
-30℃ to +80℃ |
